M40-4010246

Obsolete

Harwin Inc.

CONN HEADER SMD R/A 2POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M40-4010246

Obsolete

Harwin Inc.

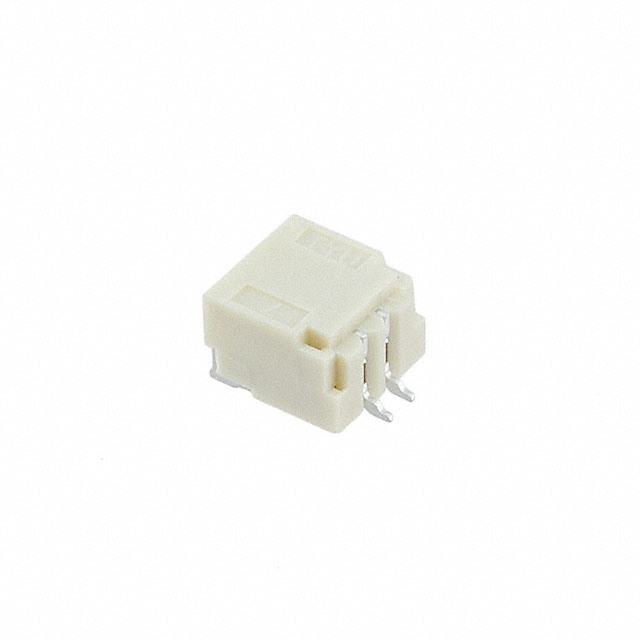

CONN HEADER SMD R/A 2POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M40-4010246

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.114 "
Insulation Height	2.9 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

M40-401 Series

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Number of Positions Loaded	Insulation Material	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Style	Connector Type	Features	Fastening Type	Number of Rows	Insulation Color	Material Flammability Rating	Shrouding	Contact Material
Harwin Inc. M40-4010846	50 V	-25 °C	85 °C	Male Pin	0.114 "	2.9 mm	Rectangular	Surface Mount Right Angle	All	Nylon 9T Polyamide (PA9T)	8	0.039 in	1 mm	Tin	Solder	Board to Cable/Wire	Header	Solder Retention	Push-Pull	1	Natural	UL94 V-0	Shrouded - 4 Wall	Phosphor Bronze
Harwin Inc. M40-4011246	50 V	-25 °C	85 °C	Male Pin	0.114 "	2.9 mm	Rectangular	Surface Mount Right Angle	All	Nylon 9T Polyamide (PA9T)	12	0.039 in	1 mm	Tin	Solder	Board to Cable/Wire	Header	Solder Retention	Push-Pull	1	Natural	UL94 V-0	Shrouded - 4 Wall	Phosphor Bronze
Harwin Inc. M40-4011046	50 V	-25 °C	85 °C	Male Pin	0.114 "	2.9 mm	Rectangular	Surface Mount Right Angle	All	Nylon 9T Polyamide (PA9T)	10	0.039 in	1 mm	Tin	Solder	Board to Cable/Wire	Header	Solder Retention	Push-Pull	1	Natural	UL94 V-0	Shrouded - 4 Wall	Phosphor Bronze
Harwin Inc. M40-4010446	50 V	-25 °C	85 °C	Male Pin	0.114 "	2.9 mm	Rectangular	Surface Mount Right Angle	All	Nylon 9T Polyamide (PA9T)	4	0.039 in	1 mm	Tin	Solder	Board to Cable/Wire	Header	Solder Retention	Push-Pull	1	Natural	UL94 V-0	Shrouded - 4 Wall	Phosphor Bronze
Harwin Inc. M40-4010246R	50 V	-25 °C	85 °C	Male Pin	0.114 "	2.9 mm	Rectangular	Surface Mount Right Angle	All	Nylon 9T Polyamide (PA9T)	2	0.039 in	1 mm	Tin	Solder	Board to Cable/Wire	Header	Solder Retention	Push-Pull	1	Natural	UL94 V-0	Shrouded - 4 Wall	Phosphor Bronze
Harwin Inc. M40-4010246	50 V	-25 °C	85 °C	Male Pin	0.114 "	2.9 mm	Rectangular	Surface Mount Right Angle	All	Nylon 9T Polyamide (PA9T)	2	0.039 in	1 mm	Tin	Solder	Board to Cable/Wire	Header	Solder Retention	Push-Pull	1	Natural	UL94 V-0	Shrouded - 4 Wall	Phosphor Bronze
Harwin Inc. M40-4010346R	50 VAC	-25 °C	85 °C	Male Pin	0.118 in	3 mm	Rectangular	Surface Mount Right Angle	All	Liquid Crystal Polymer (LCP)		0.039 in	1 mm	Tin	Solder	Board to Cable/Wire	Header	Solder Retention	Push-Pull	1	Natural	UL94 V-0	Shrouded - 4 Wall	Copper Alloy
Harwin Inc. M40-4010546	50 V	-25 °C	85 °C	Male Pin	0.114 "	2.9 mm	Rectangular	Surface Mount Right Angle	All	Nylon 9T Polyamide (PA9T)		0.039 in	1 mm	Tin	Solder	Board to Cable/Wire	Header	Solder Retention	Push-Pull	1	Natural	UL94 V-0	Shrouded - 4 Wall	Phosphor Bronze
