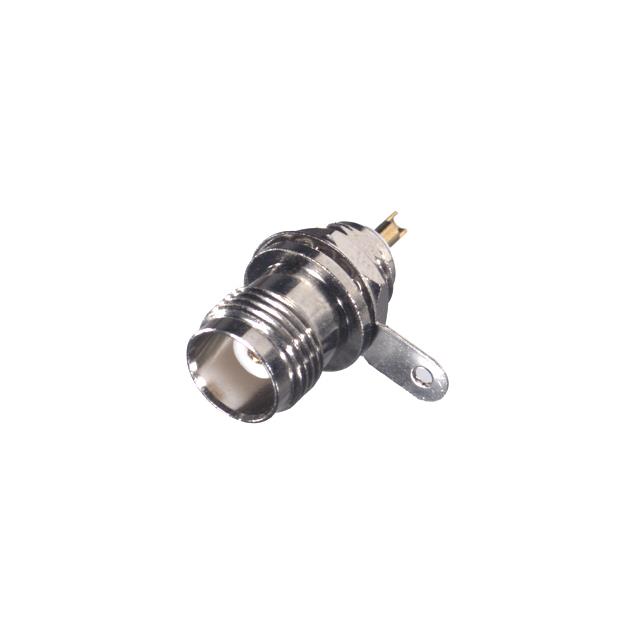

RFT-1211-1-03

Active

RF Industries

TNC FEMALE BH; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

TNC FEMALE BH; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFT-1211-1-03

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	7 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Plating	Housing Color	Contact Termination	Voltage Rating	Impedance	Features	Mounting Feature	Center Contact Material	Connector Style	Dielectric Material	Frequency - Max [Max]	Number of Ports	Shield Termination	Body Finish	Connector Type	Body Material
RF Industries RFT-1211-1-03	Gold	Silver	Solder Cup	500 V	50 Ohms	Extended Insulation	Bulkhead - Rear Side Nut	Beryllium Copper	TNC	Polytetrafluoroethylene (PTFE)	7 GHz	1	Solder	Nickel	Female Socket Jack	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
