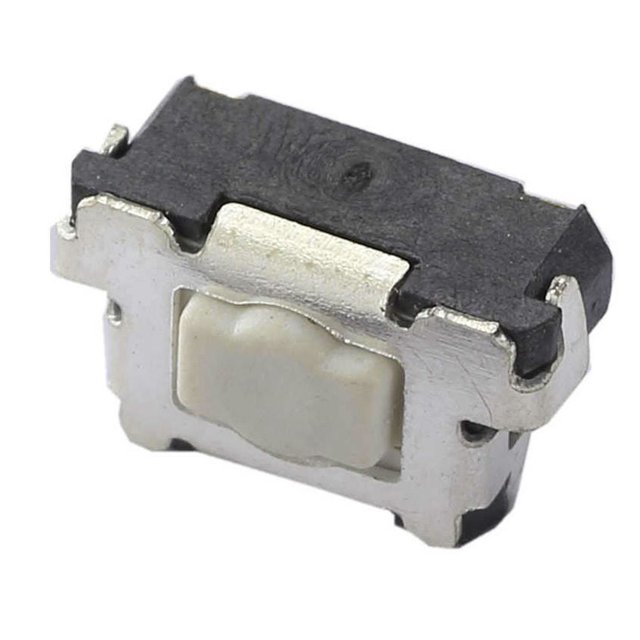

222HMSACR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Mechanical Life	Switch Travel	Outline [y]	Outline [x]	Illumination	Termination Style	Contact Rating @ Voltage	Mounting Type	Circuit	Actuator Orientation	Actuator Length, Right Angle	Operating Force
CTS Electrocomponents 222HMSACRK	Rectangular Button	85 °C	-40 °C	Tactile Feedback	Off-Mom	500000 Cycles	0.15 mm	2.55 mm	7.3 mm	Non-Illuminated	SMD (SMT) Tab	0.05 A, 12 VDC	Edge Mount, Right Angle	SPST-NO	Side Actuated	2.1 mm	240 gf
CTS Electrocomponents 222HMSACR	Rectangular Button	85 °C	-40 °C	Tactile Feedback	Off-Mom	500000 Cycles	0.15 mm	2.55 mm	6.2 mm	Non-Illuminated	SMD (SMT) Tab	0.05 A, 12 VDC	Edge Mount, Right Angle	SPST-NO	Side Actuated	2.1 mm	240 gf
CTS Electrocomponents 222HMSAAR	Rectangular Button	85 °C	-40 °C	Tactile Feedback	Off-Mom	1000000 Cycles	0.15 mm	2.55 mm	6.2 mm	Non-Illuminated	SMD (SMT) Tab	0.05 A, 12 VDC	Edge Mount, Right Angle	SPST-NO	Side Actuated	2.1 mm	120 gf
CTS Electrocomponents 222HMSAARK	Rectangular Button	85 °C	-40 °C	Tactile Feedback	Off-Mom	1000000 Cycles	0.15 mm	2.55 mm	7.3 mm	Non-Illuminated	SMD (SMT) Tab	0.05 A, 12 VDC	Edge Mount, Right Angle	SPST-NO	Side Actuated	2.1 mm	120 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.24

General part information

Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle
