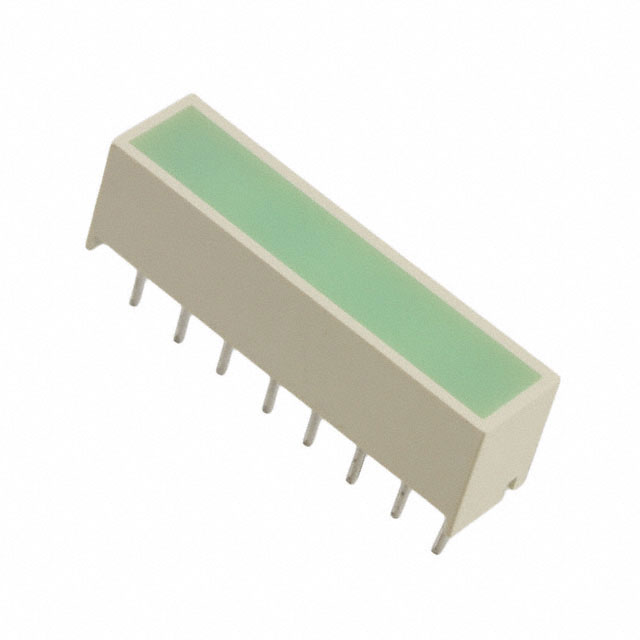

KB2550SGD

Active

Kingbright

LED LGT BAR 19.05X3.81MM GREEN

Find alt

Alpha

KB2550SGD

Active

Kingbright

LED LGT BAR 19.05X3.81MM GREEN

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

KB2550 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, Tinted 2.2V 25mA Rectangle with Flat Top 19.05mm x 3.81mm Through Hole

Technical Specifications

Parameters and characteristics for this part

Specification	KB2550SGD

Color	Green
Configuration	SIP, Bar - Single
Current	25 mA
Lens Length	19.05 mm
Lens Style	Rectangle, Flat Top
Lens Type	Tinted, Diffused
Lens Width	3.81 mm
Millicandela Rating	33 mcd
Mounting Type	Through Hole
Voltage Rating	2.2 V
Wavelength - Peak	565 nm

KB2550 Series

Part	Lens Length	Lens Width	Voltage Rating	Wavelength - Peak	Color	Configuration	Millicandela Rating	Lens Style	Current	Mounting Type	Lens Type
Kingbright KB2550CGKD	19.05 mm	3.81 mm	2.1 V	574 nm	Green	Bar - Single DIP	36 mcd	Flat Top Rectangle	150 mA	Through Hole	Diffused Tinted
Kingbright KB2550SGD	19.05 mm	3.81 mm	2.2 V	565 nm	Green	Bar - Single SIP	33 mcd	Flat Top Rectangle	25 mA	Through Hole	Diffused Tinted

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

KB2550SGD | Datasheet
