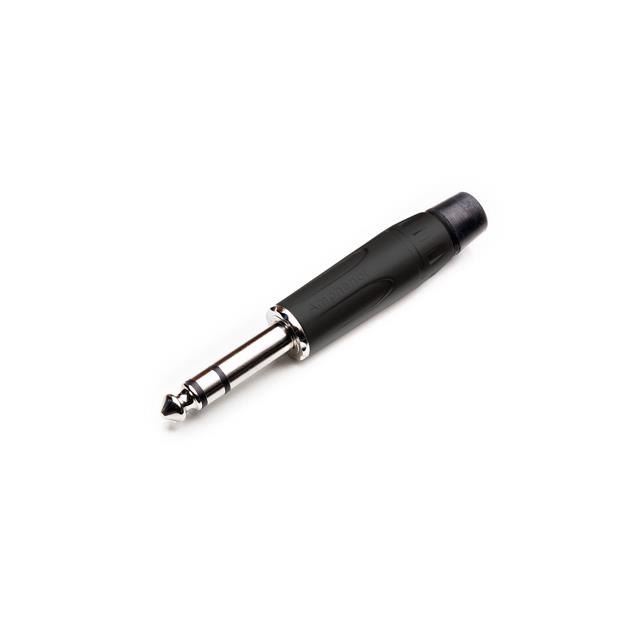

ACPS-KB

Active

AMPHENOL AUDIO

1/4" K SERIES PHONE STR STEREO N

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

1/4" K SERIES PHONE STR STEREO N

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACPS-KB	ACPS Series

Actual Diameter [diameter]	0.249 in	0.249 in
Actual Diameter [diameter]	6.32 mm	6.32 mm
Body Color	Silver, Black	Silver, Black, Gold
Connector Type	Phone Plug	Phone Plug
Contact Material	Brass	Brass
Contact Material - Plating	-	Gold
Contact Material - Plating [custom]	Nickel	Nickel
Current Rating (Amps)	10 A	10 A
Gender	Male	Male
Housing Material	Zinc Alloy	Zinc Alloy
Includes	-	1 Connector, 1 Insulator Tube, 1 Handle
Internal Switch(s)	False	False
Mating Length/Depth	1.19 in	1.19 - 1.2 in
Mating Length/Depth	30.3 mm	30.3 - 30.6 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Operating Temperature [Max]	70 °C	70 - 75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shielding	Unshielded	Unshielded, Shielded
Signal Lines	Stereo	Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)

CONN PLUG STEREP 1/4"

Part	Includes	Connector Type	Termination	Contact Material - Plating [custom]	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Current Rating (Amps)	Gender	Mounting Type	Housing Material	Mating Length/Depth	Mating Length/Depth	Signal Lines	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating [custom]
AMPHENOL AUDIO ACPS-GB	1 Connector, 1 Handle, 1 Insulator Tube	Phone Plug	Solder Eyelet(s)	Nickel	Unshielded	3	3	Black, Silver	-25 °C	75 ░C	Brass	10 A	Male	Free Hanging (In-Line)	Zinc Alloy	30.6 mm	1.2 in	Stereo	0.249 in	6.32 mm
AMPHENOL AUDIO ACPS-GB-AU	1 Connector, 1 Handle, 1 Insulator Tube	Phone Plug	Solder Eyelet(s)		Shielded	3	3	Black, Gold	-25 °C	75 ░C	Brass	10 A	Male	Free Hanging (In-Line)	Zinc Alloy	30.6 mm	1.2 in	Stereo	0.249 in	6.32 mm	Gold
AMPHENOL AUDIO ACPS-KB		Phone Plug	Solder Eyelet(s)	Nickel	Unshielded	3	3	Black, Silver	-25 °C	70 °C	Brass	10 A	Male	Free Hanging (In-Line)	Zinc Alloy	30.3 mm	1.19 in	Stereo	0.249 in	6.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 4.53

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
