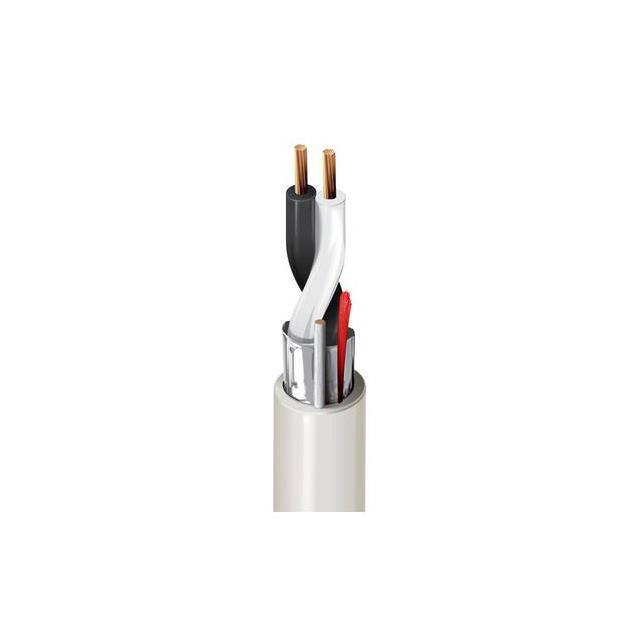

Specification	6400FE 8771000

Cable Type	Conductor, Multi
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Bare
Conductor Strand Count	7 Strands
Conductor Strand Gauge	28
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter	0.142 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Natural
Length	1000 ft
Number of Conductors	2
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	0 °C
Ratings	Style, UL, CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	20 AWG

6400FE Series

Part	Conductor Strand Count	Conductor Strand Gauge	Conductor Insulation	Jacket (Insulation) Thickness	Operating Temperature (Max)	Cable Type	Wire Gauge	Usage	Length	Voltage	Number of Conductors	Conductor Material	Jacket (Insulation) Diameter	Features	Jacket (Insulation) Material	Ratings	Shield Type	Jacket Color	Shield Coverage	Shield Material
Belden Inc. 6400FE 8771000	7 Strands	28	Low Smoke Poly-Vinyl Chloride (LSPVC)	0.015 in	75 °C	Conductor Multi	20 AWG	Security Sound	1000 ft	300 V	2	Bare Copper	0.142 in	Drain Wire Rip Cord	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	CMP Style UL	Foil	Natural	100 %	Aluminum
Belden Inc. 6400FE 009U250	7 Strands	28	Low Smoke Poly-Vinyl Chloride (LSPVC)	0.015 in	75 °C	Conductor Multi	20 AWG	Security Sound	250 ft	300 V	2	Bare Copper	0.142 in	Drain Wire Rip Cord	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	CMP Style UL	Foil	White	100 %	Aluminum
Belden Inc. 6400FE 877U1000	7 Strands	28	Low Smoke Poly-Vinyl Chloride (LSPVC)	0.015 in	75 °C	Conductor Multi	20 AWG	Security Sound	1000 ft	300 V	2	Bare Copper	0.142 in	Drain Wire Rip Cord	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	CMP Style UL	Foil	Natural	100 %	Aluminum
