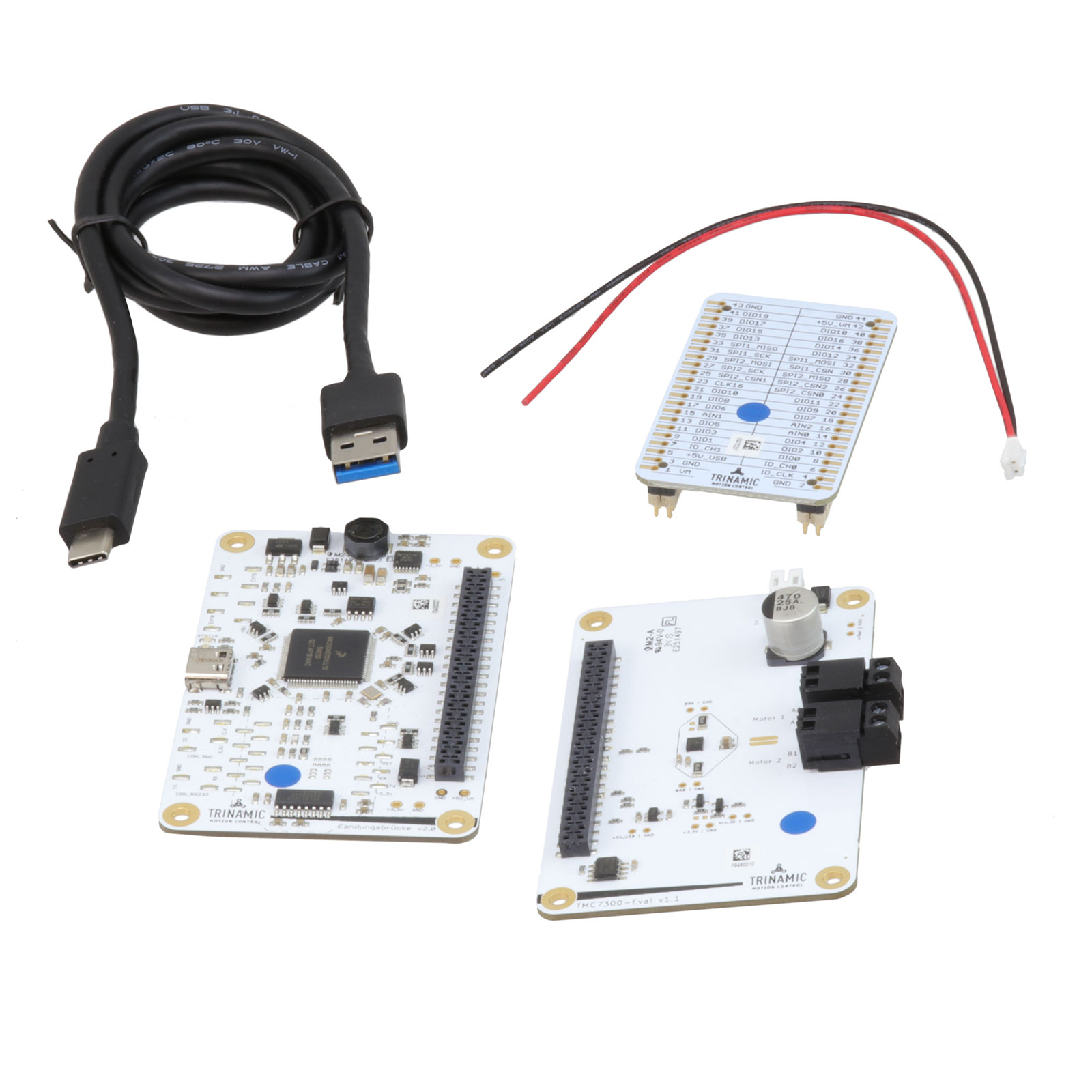

TMC7300-EVAL-KIT
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR TMC7300
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC7300-EVAL-KIT
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR TMC7300
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC7300-EVAL-KIT | TMC7300 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | - | Board(s) |
| Current - Output | - | 2.4 A |
| Function | Motor Controller/Driver | Motor Controller/Driver, Driver |
| Interface | - | UART |
| Motor Type - AC, DC | - | Brushed DC |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (4) |
| Package / Case | - | 20-VFQFN Exposed Pad |
| Primary Attributes | Motors (Stepper) | Motors (Stepper) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-QFN (3x3) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC7300 | TMC7300 |
| Voltage - Load | - | 5.25 V |
| Voltage - Load | - | 2 V |
| Voltage - Supply | - | 11 V |
| Voltage - Supply | - | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 133.75 | |
TMC7300 Series
BREAKOUTBOARD WITH TMC7300
| Part | Primary Attributes | Contents | Supplied Contents | Function | Type | Utilized IC / Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Motor Type - AC, DC | Motor Type - Stepper | Output Configuration | Package / Case | Interface | Current - Output | Supplier Device Package | Technology | Voltage - Load [Max] | Voltage - Load [Min] | Applications | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC7300-BOB | Motors (Stepper) | Board(s) | Board(s) | Motor Controller/Driver | Power Management | TMC7300 | ||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC7300-LA-T | Driver | -40 °C | 125 ¯C | Surface Mount | Brushed DC | Bipolar | Half Bridge (4) | 20-VFQFN Exposed Pad | UART | 2.4 A | 20-QFN (3x3) | Power MOSFET | 5.25 V | 2 V | General Purpose | 11 V | 2 V | |||||
Analog Devices Inc./Maxim Integrated TMC7300-EVAL | Motors (Stepper) | Board(s) | Motor Controller/Driver | Power Management | TMC7300 | |||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC7300-EVAL-KIT | Motors (Stepper) | Board(s) | Motor Controller/Driver | Power Management | TMC7300 |
Description
General part information
TMC7300 Series
TMC7300 Motor Controller/Driver Power Management Evaluation Board
Documents
Technical documentation and resources
