SE2574BL-RC
ObsoleteSkyworks Solutions Inc.
IC AMP 802.11B/G/N 2.4GHZ 8QFN
Deep-Dive with AI
Search across all available documentation for this part.
SE2574BL-RC
ObsoleteSkyworks Solutions Inc.
IC AMP 802.11B/G/N 2.4GHZ 8QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE2574BL-RC |
|---|---|
| Current - Supply | 165 mA |
| Frequency [Max] | 2.5 GHz |
| Frequency [Min] | 2.4 GHz |
| Gain | 29 dBi |
| Mounting Type | Surface Mount |
| P1dB | 25 dBm |

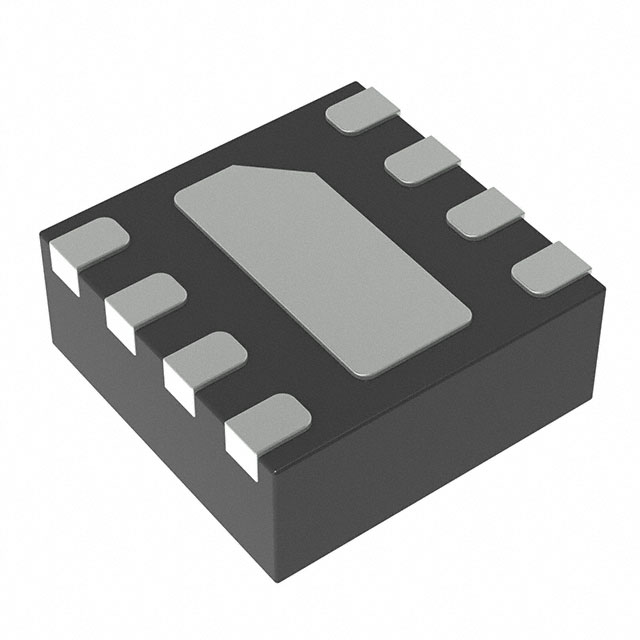

| Package / Case | 8-VFDFN Exposed Pad |
| RF Type | 802.11b/g/n, WLAN |
| Supplier Device Package | 8-QFN (2x2) |
| Test Frequency [Max] | 2.5 GHz |
| Test Frequency [Min] | 2.4 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SE2574 Series
RF Amplifier IC 802.11b/g/n, WLAN 2.4GHz ~ 2.5GHz 8-QFN (2x2)
Documents
Technical documentation and resources
No documents available
