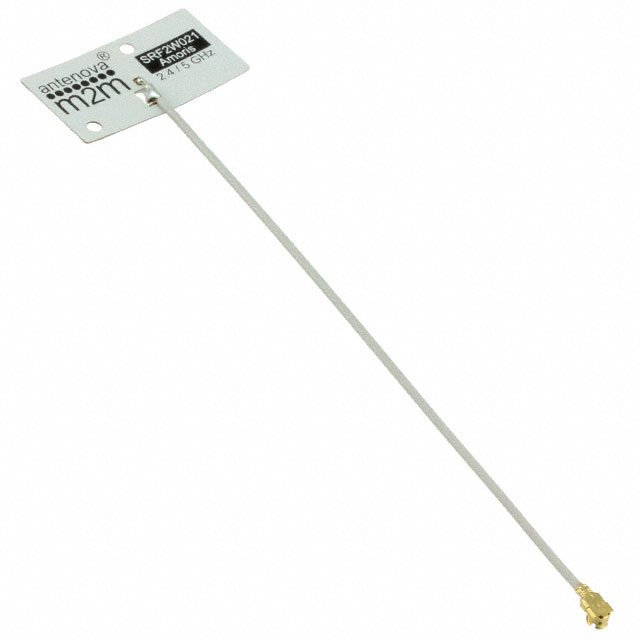

SRF2W021-50

Active

Antenova

RF ANT 2.4GHZ/5.4GHZ FLAT PATCH

Search across all available documentation for this part.

Active

Antenova

RF ANT 2.4GHZ/5.4GHZ FLAT PATCH

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 2.4GHZ/5.4GHZ FLAT PATCH

Part	Number of Bands	Mounting Type	Antenna Type	Applications	RF Family/Standard	Height (Max)	Height (Max) [Max]	Features	Features	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Termination	Gain	Frequency Range [Min]	Frequency Range [Max]	Return Loss	VSWR
Antenova SRF2W021-50	2	Adhesive	Flat Patch	Wi-Fi	WiFi	0.15 mm	0.006 in	50 mm	Cable	4 GHz	2 GHz	3 GHz	IPEX MHF1, U.FL (UMCC)	2.8 dBi, 5.1 dBic	2.4 GHz, 4.9 GHz	2.5 GHz, 5.9 GHz	-14 dB, -10 dB	1.7
Antenova SRF2W021-150	2	Adhesive	Flat Patch	Wi-Fi	WiFi	0.15 mm	0.006 in		Cable - 150mm	4 GHz	2 GHz	3 GHz	IPEX MHF1, U.FL (UMCC)	2.8 dBi, 5.1 dBic	2.4 GHz, 4.9 GHz	2.5 GHz, 5.9 GHz	-14 dB, -10 dB	1.7
Antenova SRF2W021-100	2	Adhesive	Flat Patch	Wi-Fi	WiFi	0.15 mm	0.006 in	100 mm	Cable	4 GHz	2 GHz	3 GHz	IPEX MHF1, U.FL (UMCC)	2.8 dBi, 5.1 dBic	2.4 GHz, 4.9 GHz	2.5 GHz, 5.9 GHz	-14 dB, -10 dB	1.7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.59

General part information

RF ANTENNA Wi-Fi Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
