JCL3012D15

Active

XP POWER

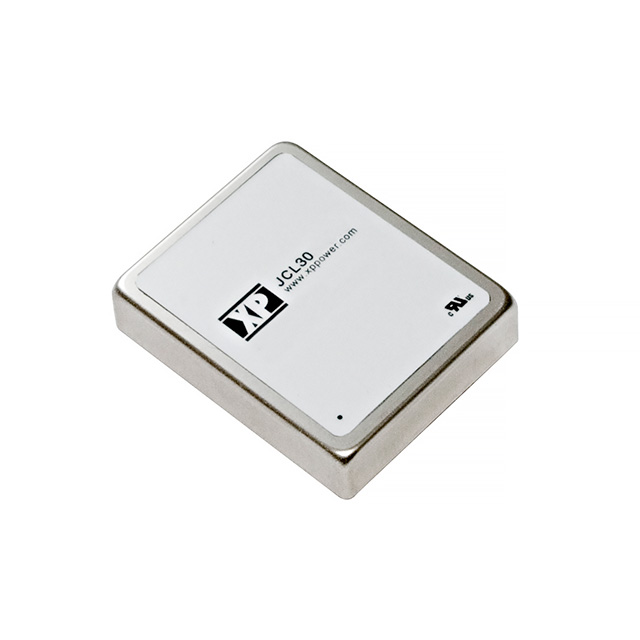

DC DC CONVERTER +/-15V 30W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-15V 30W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Voltage - Isolation	Applications	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
XP POWER JCL3012S3V3	1	1.5 kV	ITE (Commercial)	18 W	5.5 A	9 V	18 V	83 %	OCP OTP OVP Remote On/Off SCP	0.4 in	50.8 mm	40.64 mm	Isolated Module	3.3 V	Through Hole	-40 °C	100 °C	7-DIP Module
XP POWER JCL3012S05	1	1.5 kV	ITE (Commercial)	25 W	5 A	9 V	18 V	86 %	OCP OTP OVP Remote On/Off SCP	0.4 in	50.8 mm	40.64 mm	Isolated Module	5 V	Through Hole	-40 °C	100 °C	7-DIP Module
XP POWER JCL3012S12	1	1.5 kV	ITE (Commercial)	30 W	2.5 A	9 V	18 V	90 %	OCP OTP OVP Remote On/Off SCP	0.4 in	50.8 mm	40.64 mm	Isolated Module	12 V	Through Hole	-40 °C	100 °C	7-DIP Module
XP POWER JCL3012D15	2	1.5 kV	ITE (Commercial)	30 W		9 V	18 V	90 %	OCP OTP OVP Remote On/Off SCP	0.4 in	50.8 mm	40.64 mm	Isolated Module	15 V	Through Hole	-40 °C	100 °C	7-DIP Module	1 A	1 A	-15 V
XP POWER JCL3012D12	2	1.5 kV	ITE (Commercial)	30 W		9 V	18 V	90 %	OCP OTP OVP Remote On/Off SCP	0.4 in	50.8 mm	40.64 mm	Isolated Module	12 V	Through Hole	-40 °C	100 °C	7-DIP Module	1.25 A		-12 V
XP POWER JCL3012S15	1	1.5 kV	ITE (Commercial)	30 W	2 A	9 V	18 V	90 %	OCP OTP OVP Remote On/Off SCP	0.4 in	50.8 mm	40.64 mm	Isolated Module	15 V	Through Hole	-40 °C	100 °C	7-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 80.67

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 9V - 18V Input
