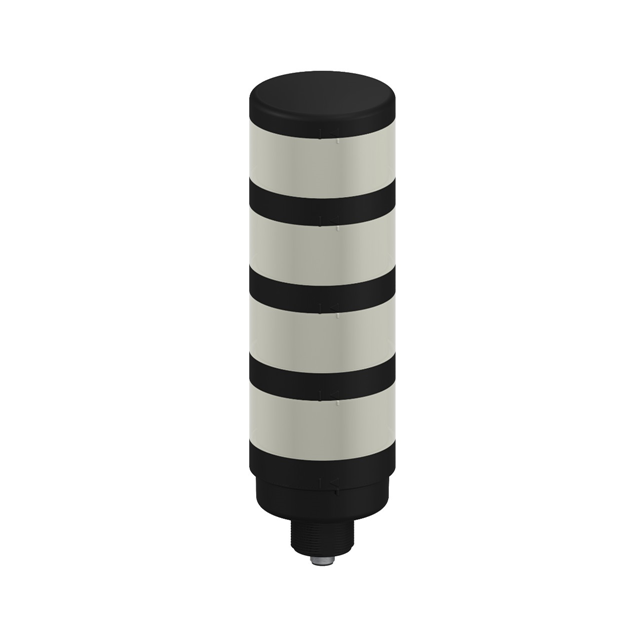

Specification	TL70WBYRQ

Function - Lighting	Steady
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lamp Type	LED
Light Color	Blue, White, Red, Yellow
Number of Stacks	4
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-40 °C
Termination Style	Connector
Type	Complete Unit
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	12 VDC

TL70WB Series

Part	Light Color	Termination Style	Function - Lighting	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Lamp Type	Type	Number of Stacks	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Function - Audible	Features
BANNER ENGINEERING TL70WBGYRQ	Blue Green Red White Yellow	Wire Leads	Steady	12 VDC	30 VDC	LED	Complete Unit	5	IP65	Dust Tight Water Resistant	50 °C	-40 °C
BANNER ENGINEERING TL70WBYRQ	Blue Red White Yellow	Connector	Steady	12 VDC	30 VDC	LED	Complete Unit	4	IP65	Dust Tight Water Resistant	50 °C	-40 °C
BANNER ENGINEERING TL70WBGYRAPQ	Blue Green Red White Yellow	Connector M12	Steady	12 VDC	30 VDC	LED	Complete Unit	6	IP50	Dust Protected	50 °C	-20 °C	Programmable	Alarm Dip Switch
BANNER ENGINEERING TL70WBYRGALQ	Blue Green Red White Yellow	Connector M12	Steady	12 VDC	30 VDC	LED	Complete Unit	6	IP65	Dust Tight Water Resistant	50 °C	-40 °C	Multiple	Alarm Dip Switch
BANNER ENGINEERING TL70WBGORAP	Blue Green Orange Red White	Wire Leads	Steady	12 VDC	30 VDC	LED	Complete Unit	6	IP50	Dust Protected	50 °C	-20 °C	Programmable	Alarm Dip Switch
BANNER ENGINEERING TL70WBRYAQ	Blue Red White Yellow	Connector M12	Steady	12 VDC	30 VDC	LED	Complete Unit	4	IP65	Dust Tight Water Resistant	50 °C	-40 °C	Multiple	Alarm Dip Switch
BANNER ENGINEERING TL70WBGYR	Blue Green Red White Yellow	Wire Leads	Steady	12 VDC	30 VDC	LED	Complete Unit	5	IP65	Dust Tight Water Resistant	50 °C	-40 °C		Dip Switch
BANNER ENGINEERING TL70WBGYRAT	Blue Green Red White Yellow	Wire Leads	Steady	12 VDC	30 VDC	LED	Complete Unit	5	IP65	Dust Tight Water Resistant	50 °C	-40 °C	Multiple	Alarm Dip Switch
BANNER ENGINEERING TL70WBGYRAQ	Blue Green Red White Yellow	Wire Leads	Steady	12 VDC	30 VDC	LED	Complete Unit	5	IP65	Dust Tight Water Resistant	50 °C	-40 °C	Multiple	Alarm
BANNER ENGINEERING TL70WBGYRALQ	Blue Green Red White Yellow	Connector M12	Steady	12 VDC	30 VDC	LED	Complete Unit	6	IP65	Dust Tight Water Resistant	50 °C	-40 °C	Multiple	Alarm Dip Switch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TL70WBYRQ | Datasheet
