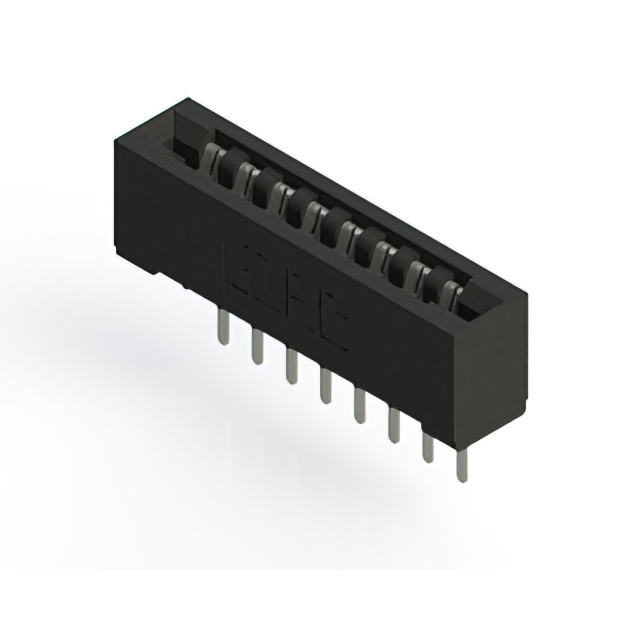

857-008-427-101

Active

EDAC Inc.

CONN EDGE SGL FML 8POS 0.156 TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-008-427-101

Active

EDAC Inc.

CONN EDGE SGL FML 8POS 0.156 TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-008-427-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

857-008 Series

...

Part	Number of Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Read Out	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Material - Insulation	Card Type	Contact Type	Pitch [x]	Pitch [x]	Gender	Number of Positions	Contact Material	Mounting Type	Termination	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Flange Feature	Flange Feature
EDAC Inc. 857-008-427-101	1	8	8	8	Single	Tin	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Semi Bellows	0.156 in	3.96 mm	Female	8	Copper Alloy	Through Hole	Solder	1
EDAC Inc. 857-008-559-103	1	8	8	8	Single	Gold	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Semi Bellows	0.156 in	3.96 mm	Female	8	Copper Alloy	Through Hole Right Angle	Solder	1	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 857-008-431-104	1	8	8	8	Single	Tin	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Semi Bellows	0.156 in	3.96 mm	Female	8	Copper Alloy	Through Hole	Solder	1			0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 857-008-453-102	2	8	8	8	Dual	Tin	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Semi Bellows	0.156 in	3.96 mm	Female		Copper Alloy	Through Hole Right Angle	Solder	1			0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	16
EDAC Inc. 857-008-525-107	1	8	8	8	Single	Gold	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Semi Bellows	0.156 in	3.96 mm	Female	8	Copper Alloy	Through Hole	Solder	1	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-008-421-108	2	8	8	8	Dual	Tin	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Semi Bellows	0.156 in	3.96 mm	Female		Copper Alloy	Through Hole	Solder	1				4-40 Flush Mount Threaded Insert Top Opening		16
EDAC Inc. 857-008-547-103	1	8	8	8	Single	Gold	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Semi Bellows	0.156 in	3.96 mm	Female	8	Copper Alloy	Through Hole	Wire Wrap	1	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 857-008-421-112	2	8	8	8	Dual	Tin	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Semi Bellows	0.156 in	3.96 mm	Female		Copper Alloy	Through Hole	Solder	1				Side Mount Opening Unthreaded		16	3.25 mm	0.128 in
EDAC Inc. 857-008-541-102	2	8	8	8	Dual	Gold	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Semi Bellows	0.156 in	3.96 mm	Female		Copper Alloy	Through Hole	Wire Wrap	1	10 Áin	0.25 Ám	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	16
EDAC Inc. 857-008-401-102	2	8	8	8	Dual	Tin	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Semi Bellows	0.156 in	3.96 mm	Female		Copper Alloy	Through Hole	Solder Eyelet(s)	1			0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 38.54
Newark	Each	1	$ 51.00
		100	$ 29.05
		250	$ 25.09
		500	$ 23.05
		1000	$ 19.63

Description

General part information

857-008 Series

8 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black

Documents

Technical documentation and resources
