BD-05BFFA-QL8SP0
ActiveAmphenol LTW

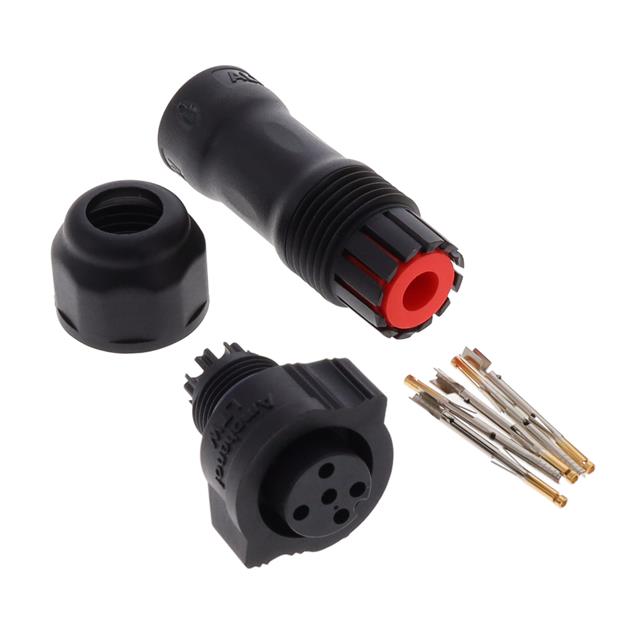

X-LOK, STANDARD SIZE, 5A, 05 PIN
Deep-Dive with AI
Search across all available documentation for this part.
BD-05BFFA-QL8SP0
ActiveAmphenol LTW
X-LOK, STANDARD SIZE, 5A, 05 PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BD-05BFFA-QL8SP0 |
|---|---|
| Cable Opening [Max] [custom] | 0.236 in |
| Cable Opening [Max] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 5 mm |
| Cable Opening [Min] [custom] | 0.197 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | B |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.37 | |
| 10 | $ 6.66 | |||
| 100 | $ 5.83 | |||
| 1000 | $ 4.30 | |||
Description
General part information
BD-05BFFA Series
5 (Data) Position Circular Connector Plug, Female Sockets Crimp
