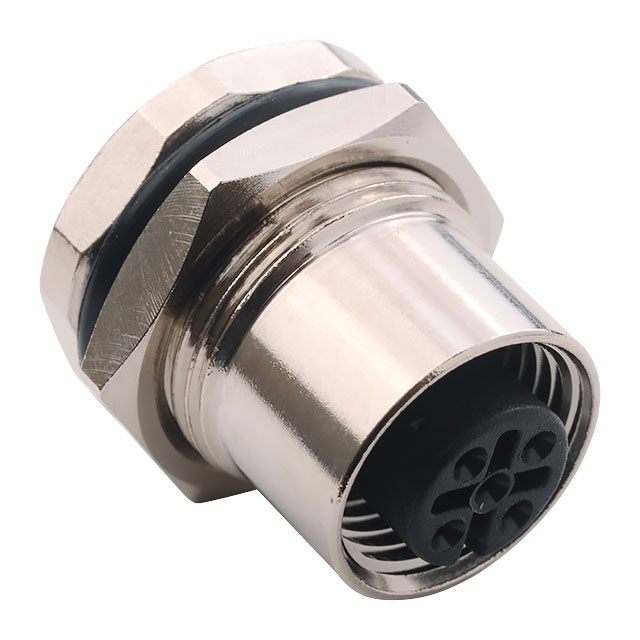

Specification	859-005-203R001

Applications	Medical, Industrial
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating	4 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	60 V

859-005 Series

Part	Number of Positions	Orientation	Voltage Rating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Material	Current Rating	Mounting Type	Shell Finish	Primary Material	Shell Material	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Shielding	Fastening Type	Connector Type	Color	Shell Size - Insert	Mounting Feature	Termination	Insert Material	Ingress Protection Description	Ingress Protection IP Rating
NorComp Inc. 859-005-203R001	5	A	60 V	Flash	UL94 V-0	Brass	4 A	Panel Mount	Nickel	Metal	Brass	Industrial Medical	-40 °C	85 °C	Gold	Shielded	Threaded	Female Sockets Plug	Silver	M12-5	Bulkhead Front Side Nut	Solder Cup	PBT Polybutylene Terephthalate	Dust Tight Waterproof	IP67
