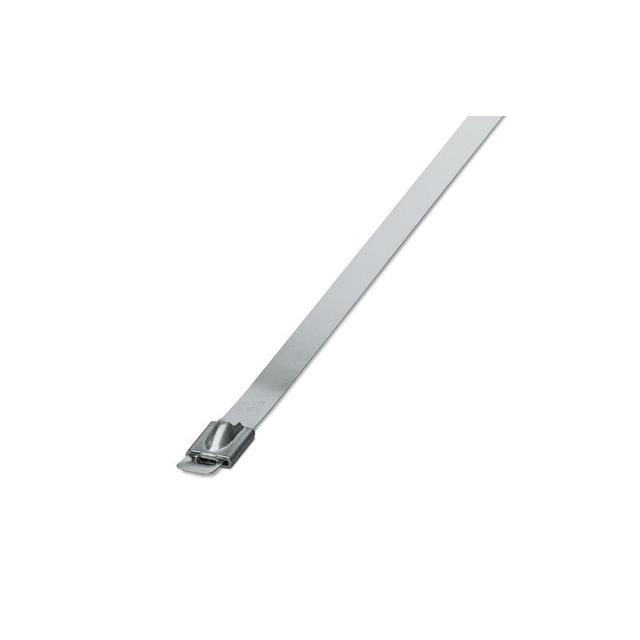

CBL TIE LOCKING SIL 300LB 1.706'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3240829
ActivePhoenix Contact
CBL TIE LOCKING SIL 300LB 1.706'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3240829 | WT-STEEL Series |
|---|---|---|
| Bundle Diameter | 152 mm | 152 mm |
| Bundle Diameter | 5.98 " | 5.98 " |
| Bundle Diameter | - | 102 - 203 mm |
| Bundle Diameter | - | 4.02 - 7.99 in |
| Color | Silver | Silver, Black |
| Diameter - Inside | - | 17 - 38 mm |
| Diameter - Inside | - | 0.669 - 1.496 in |
| Diameter - Inside | - | 29 mm |
| Diameter - Outside | - | 0.827 - 1.772 in |
| Diameter - Outside | - | 21 - 45 mm |
| Features | Halogen Free | Halogen Free |
| Length | - | 1 m |
| Length | - | 3.28 ft |
| Length - Actual | - | 259.08 - 838 mm |
| Length - Actual | - | 0.85 - 2.749 ft |
| Length - Actual | - | 10.2 in |
| Length - Actual [x] | 520 mm | 1.07 - 679.96 mm |
| Length - Actual [x] | 1.706 ' | 1.181 - 3.5 ' |
| Length - Approximate | 20.5 in | 10.25 - 33 in |
| Length - Approximate | - | 60 in |
| Material | Stainless Steel 316 | Stainless Steel 316, Stainless Steel 304, Galvanized, Steel, PVC Coated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature | - | -25 °C |
| Operating Temperature | - | 80 C |
| Tensile Strength | 136.08 kg | 136.08 kg |
| Tensile Strength | 300 lbs | 300 lbs |
| Type | - | Protective Hose, Wire Loom |
| Type Attributes | - | Convoluted, Corrugated |
| Width | - | 0.181 - 0.299 in |
| Width | - | 4.6 - 7.59 mm |
| Width [x] | 0.311 " | 0.311 " |
| Width [x] | 7.9 mm | 7.9 mm |
| Wire/Cable Tie Type | Standard, Locking | Standard, Locking, Strapping |
WT-STEEL Series
CBL TIE LOCKING SIL 300LB 1.706'
| Part | Color | Wire/Cable Tie Type | Material | Length - Approximate | Mounting Type | Tensile Strength | Tensile Strength | Bundle Diameter | Bundle Diameter | Features | Width [x] | Width [x] | Length - Actual [x] | Length - Actual [x] | Width [y] | Width [y] | Length - Actual | Bundle Diameter [diameter] | Bundle Diameter [diameter] | Type | Type Attributes | Operating Temperature [Min] | Operating Temperature [Max] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Length [x] | Length [x] | Length - Actual | Length - Actual | Diameter - Inside | Length - Approximate [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240829 | Silver | Locking, Standard | Stainless Steel 316 | 20.5 in | Free Hanging (In-Line) | 136.08 kg | 300 lbs | 152 mm | 5.98 " | Halogen Free | 0.311 " | 7.9 mm | 520 mm | 1.706 ' | |||||||||||||||||||
Phoenix Contact 3240811 | Silver | Locking, Standard | Stainless Steel 304 | 20.5 in | Free Hanging (In-Line) | 152 mm | 5.98 " | Halogen Free | 520 mm | 1.706 ' | 0.181 in | 4.6 mm | |||||||||||||||||||||
Phoenix Contact 3240828 | Silver | Locking, Standard | Stainless Steel 316 | 14.25 in | Free Hanging (In-Line) | 136.08 kg | 300 lbs | Halogen Free | 0.311 " | 7.9 mm | 1.181 ft | 360 mm | 102 mm | 4.02 in | |||||||||||||||||||
Phoenix Contact 3240870 | Black | Galvanized, PVC Coated, Steel | Protective Hose, Wire Loom | Convoluted, Corrugated | -25 °C | 80 C | 0.827 in | 21 mm | 17 mm | 0.669 in | 1 m | 3.28 ft | |||||||||||||||||||||
Phoenix Contact 3240822 | Silver | Strapping | Stainless Steel 316 | 10.25 in | Free Hanging (In-Line) | 0.181 in | 4.6 mm | 259.08 mm | 0.85 ft | 10.2 in | |||||||||||||||||||||||
Phoenix Contact 3240872 | Black | Galvanized, PVC Coated, Steel | Protective Hose, Wire Loom | Convoluted, Corrugated | -25 °C | 80 C | 1.417 in | 36 mm | 1.142 in | 1 m | 3.28 ft | 29 mm | |||||||||||||||||||||
Phoenix Contact 3240823 | Silver | Strapping | Stainless Steel 316 | 14.5 in | Free Hanging (In-Line) | 1.181 ft | 0.181 in | 4.6 mm | 360 mm | ||||||||||||||||||||||||
Phoenix Contact 3240723 | Silver | Strapping | Stainless Steel 304 | 33 in | Free Hanging (In-Line) | 0.181 in | 4.6 mm | 838 mm | 2.749 ft | ||||||||||||||||||||||||
Phoenix Contact 3240805 | Silver | Strapping | Stainless Steel 304 | Free Hanging (In-Line) | 1.07 m | 3.5 ft | 0.181 in | 4.6 mm | 60 in | ||||||||||||||||||||||||
Phoenix Contact 3240826 | Silver | Strapping | Stainless Steel 316 | Free Hanging (In-Line) | 0.311 " | 7.9 mm | 1.07 m | 3.5 ft | 60 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 1.72 | |
Description
General part information
WT-STEEL Series
Standard, Locking Silver 5.98" (152.00mm) 0.311" (7.90mm) 300 lbs (136.08 kg)
