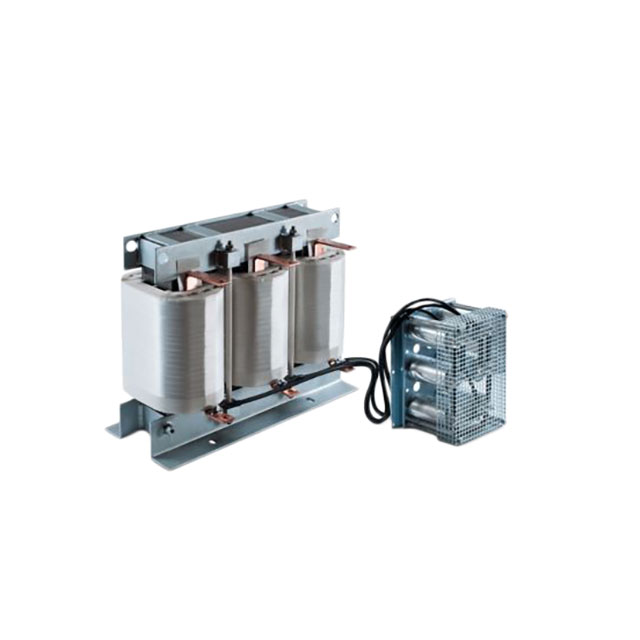

FN5045-62-34

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 62A CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN5045-62-34

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 62A CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN5045-62-34

Applications	Regenerative Motor Drive
Configuration	Single Stage
Current	62 A
Filter Type	Three Phase (Delta)
Inductance	850 µH
Mounting Type	Chassis Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Termination Style	Terminal Block

FN5045 Series

Part	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Filter Type	Termination Style	Configuration	Current
TE Connectivity Raychem Cable Protection FN5045-660-99	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	140 µH	Three Phase (Delta)	Terminal Block	Single Stage	660 A
TE Connectivity Raychem Cable Protection FN5045-48-34	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C		Three Phase (Delta)	Terminal Block	Single Stage	48 A
TE Connectivity Raychem Cable Protection FN5045-10-44	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	5.2 mH	Three Phase (Delta)	Terminal Block	Single Stage	10 A
TE Connectivity Raychem Cable Protection FN5045-880-99	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	110 µH	Three Phase (Delta)	Terminal Block	Single Stage	880 A
TE Connectivity Raychem Cable Protection FN5045-115-35	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	500 µH	Three Phase (Delta)	Terminal Block	Single Stage	115 A
TE Connectivity Raychem Cable Protection FN5045-62-34	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	850 µH	Three Phase (Delta)	Terminal Block	Single Stage	62 A
TE Connectivity Raychem Cable Protection FN5045-480-99	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	110 µH	Three Phase (Delta)	Terminal Block	Single Stage	480 A
TE Connectivity Raychem Cable Protection FN5045-1200-99	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	75 µH	Three Phase (Delta)	Terminal Block	Single Stage	1.2 kA
TE Connectivity Raychem Cable Protection FN5045-750-99	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	120 µH	Three Phase (Delta)	Terminal Block	Single Stage	750 A
TE Connectivity Raychem Cable Protection FN5045-24-33	Chassis Mount	Regenerative Motor Drive	70 °C	-25 °C	2.4 mH	Three Phase (Delta)	Terminal Block	Single Stage	24 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3453.29

Description

General part information

FN5045 Series

Three Phase (Delta) EMC/EMI Line Filter 62 A Single Stage Terminal Block
