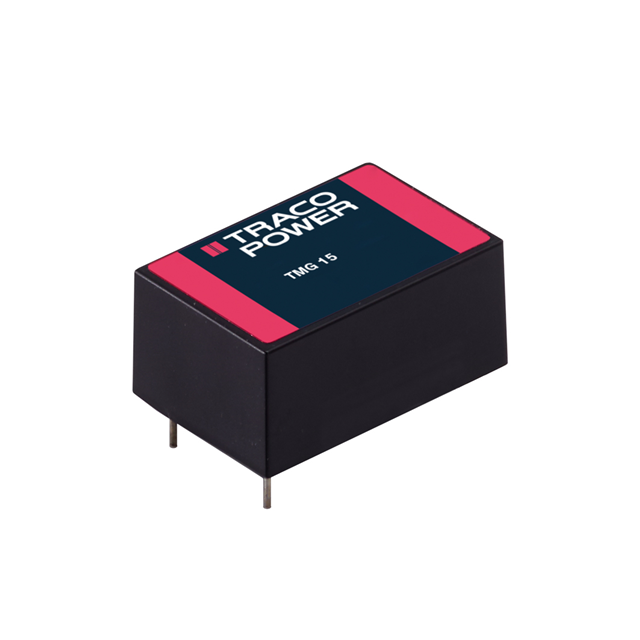

TMG 15105
ActiveTraco Power
AC/DC CONVERTER 5V 14W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTMG Certs
TMG 15105
ActiveTraco Power
AC/DC CONVERTER 5V 14W
Deep-Dive with AI
DocumentsTMG Certs
Technical Specifications
Parameters and characteristics for this part
| Specification | TMG 15105 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 2.7 A |
| Efficiency | 80 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package / Case | 4-DIP Module |
| Power (Watts) | 14 Watts |
| Size / Dimension [x] | 1.62 " |
| Size / Dimension [x] | 41.2 mm |
| Size / Dimension [y] | 27.2 mm |
| Size / Dimension [y] | 1.07 in |
| Size / Dimension [z] | 19.1 mm |
| Size / Dimension [z] | 0.75 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 43.30 | |
| 10 | $ 37.89 | |||
| 25 | $ 36.62 | |||
| 50 | $ 35.70 | |||
| 100 | $ 34.79 | |||
| 250 | $ 33.63 | |||
| 500 | $ 29.79 | |||
Description
General part information
TMG 15 Series
Enclosed AC DC Converters 1 Output 5V 2.7A 90 ~ 264 VAC, 120 ~ 370 VDC Input
