2-130008-1
ActiveTE Connectivity AMP Connectors

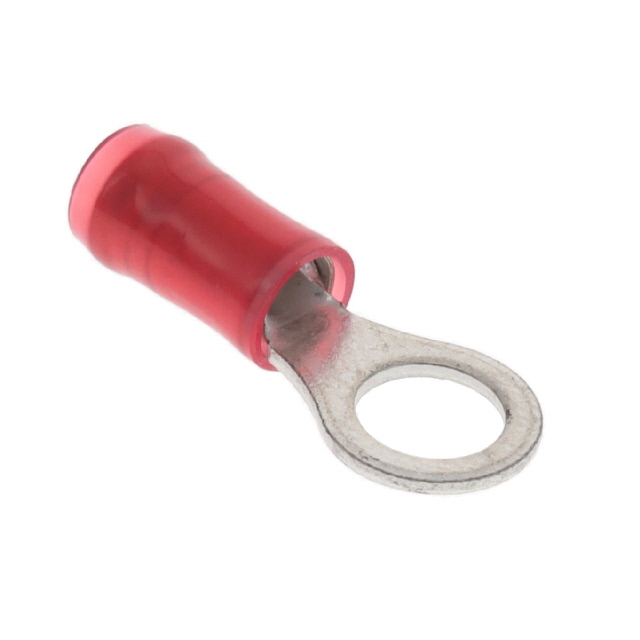

CONN RING CIRC 16-22AWG M5 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-130008-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 16-22AWG M5 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-130008-1 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter [Max] [diameter] | 0.14 in |
| Insulation Diameter [Max] [diameter] | 3.56 mm |
| Insulation Diameter [Min] [diameter] | 0.105 in |
| Insulation Diameter [Min] [diameter] | 2.67 mm |
| Length - Overall [x] | 21.59 mm |
| Length - Overall [x] | 0.85 " |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.033 in |
| Thickness | 0.84 mm |
| Width - Outer Edges [y] | 7.92 mm |
| Width - Outer Edges [y] | 0.312 in |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.20 | |
| 10 | $ 1.12 | |||
| 25 | $ 1.08 | |||
| 50 | $ 1.07 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.85 | |||
| 1000 | $ 0.76 | |||
| 2500 | $ 0.71 | |||
| Tape & Reel (TR) | 5000 | $ 0.74 | ||
| 10000 | $ 0.70 | |||
130008 Series
CONN RING CIRC 16-22AWG M5 CRIMP
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Stud/Tab Size | Mounting Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Contact Material | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Contact Finish | Terminal Type | Features | Thickness | Thickness | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-130008-1 | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | M5 Stud | Free Hanging (In-Line) | 7.92 mm | 0.312 in | Crimp | Copper | Insulated | 22 AWG | 16 AWG | 21.59 mm | 0.85 " | Tin | Circular | Serrated Termination | 0.033 in | 0.84 mm | Red |
Description
General part information
130008 Series
Ring Terminal Connector M5 Stud Circular 16-22 AWG Crimp
