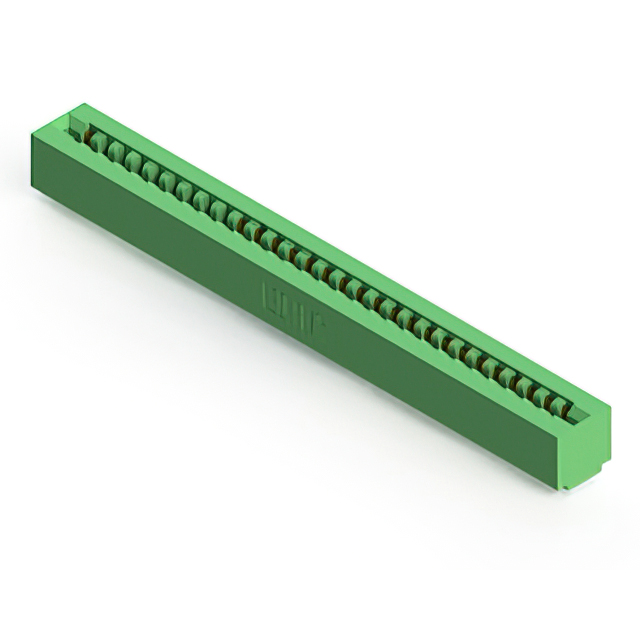

807-058-560-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 58POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-058-560-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 58POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-058-560-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

807-058 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Number of Positions/Bay/Row	Read Out	Number of Rows	Termination Rows	Number of Positions	Gender	Card Type	Pitch [x]	Pitch [x]	Color	Material - Insulation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination	Contact Type	Features	Flange Feature	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 807-058-460-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Board Edge Straddle Mount	125 °C	-40 °C	Tin	Solder	Semi Bellows	Card Extender	Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 807-058-420-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Through Hole	125 °C	-40 °C	Tin	Solder	Semi Bellows
EDAC Inc. 807-058-400-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Through Hole	125 °C	-40 °C	Tin	Solder Eyelet(s)	Semi Bellows
EDAC Inc. 807-058-558-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Single	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Through Hole Right Angle	125 °C	-40 °C	Gold	Solder	Semi Bellows		Side Mount Opening Unthreaded	3.25 mm	0.128 in	10 Áin	0.25 Ám
EDAC Inc. 807-058-522-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Through Hole	125 °C	-40 °C	Gold	Solder	Semi Bellows		Side Mount Opening Unthreaded	3.25 mm	0.128 in	10 Áin	0.25 Ám
EDAC Inc. 807-058-560-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Board Edge Straddle Mount	125 °C	-40 °C	Gold	Solder	Semi Bellows	Card Extender				10 Áin	0.25 Ám
EDAC Inc. 807-058-522-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Through Hole	125 °C	-40 °C	Gold	Solder	Semi Bellows					10 Áin	0.25 Ám
EDAC Inc. 807-058-500-202	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Through Hole	125 °C	-40 °C	Gold	Solder Eyelet(s)	Semi Bellows		Flush Mount Top Opening Unthreaded			10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 807-058-420-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Through Hole	125 °C	-40 °C	Tin	Solder	Semi Bellows		Floating Bobbin Flush Mount					2.95 mm	0.116 in
EDAC Inc. 807-058-540-202	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	29	Dual	2	2	58	Female	Non Specified - Dual Edge	0.156 in	3.96 mm	Green	Diallyl Phthalate (DAP)	Through Hole	125 °C	-40 °C	Gold	Wire Wrap	Semi Bellows		Flush Mount Top Opening Unthreaded			10 Áin	0.25 Ám	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 101.82
Newark	Each	1	$ 117.55
		100	$ 91.23
		250	$ 85.23
		500	$ 73.64
		1000	$ 62.25

Description

General part information

807-058 Series

58 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
