1-1337562-0

Active

TE Connectivity AMP Connectors

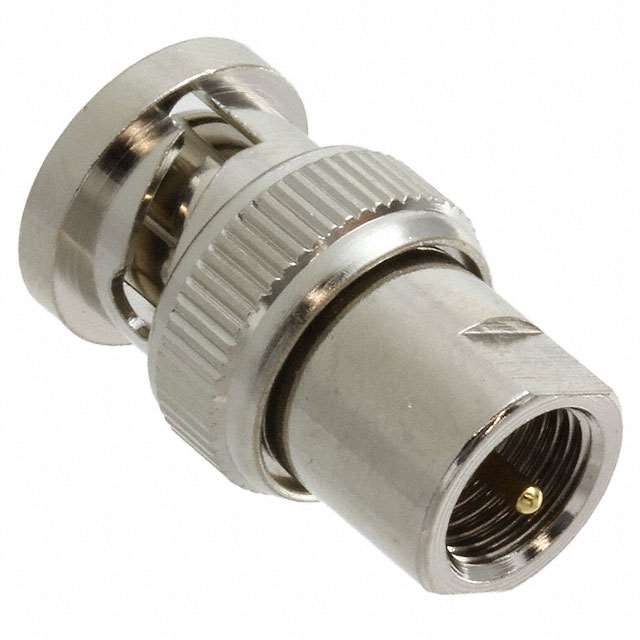

CONN ADAPT FME PLUG TO BNC PLUG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT FME PLUG TO BNC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337562-0

Adapter Series	BNC to FME
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	FME Plug, Male Pin
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

CONN ADAPT FME PLUG TO BNC PLUG

Part	Convert From (Adapter End)	Style	Conversion Type	Adapter Series	Mating Cycles	Insertion Loss	Frequency - Max [Max]	Impedance	Center Contact Material	Center Gender	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Convert To (Adapter End)	Body Finish	Center Contact Plating	Fastening Type	Dielectric Material	Mounting Type	Body Material
TE Connectivity AMP Connectors 1-1337562-0	FME Plug, Male Pin	Straight	Between Series	BNC to FME	500	0.2 dB	2 GHz	50 Ohms	Brass	Male to Male	85 °C	-40 °C	Plug to Plug	BNC Plug, Male Pin	Nickel	Gold	Bayonet Lock, Threaded	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.83

General part information

Adapter Coaxial Connector FME Plug, Male Pin To BNC Plug, Male Pin 50 Ohms
