MLDX-001D-DX01-N

Active

Amphenol All Sensors Corporation

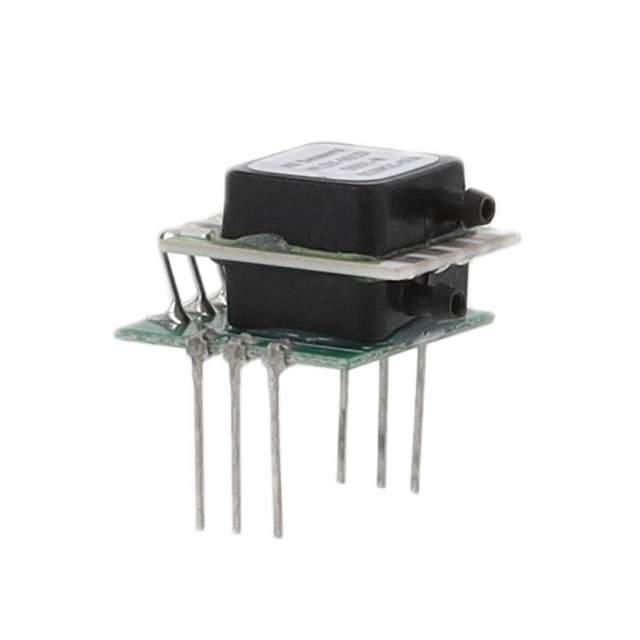

SENSOR 1PSID 0.09" .015V 6DIP

Deep-Dive with AI

Search across all available documentation for this part.

MLDX-001D-DX01-N

Active

Amphenol All Sensors Corporation

SENSOR 1PSID 0.09" .015V 6DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 79.44
		5	$ 70.34

Description

General part information

MLDX Series

Pressure Sensor ±1PSI (±6.89kPa) Differential Male - 0.09" (2.24mm) Tube, Dual 0 mV ~ 15 mV 6-DIP (0.600", 15.24mm), Dual Ports, Same Side

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MLDX-001D-DX01-N	MLDX Series

Accuracy	0.3 %	0.3 - 0.5 %
Features	Temperature Compensated	Temperature Compensated
Maximum Pressure	48.26 kPa	48.26 - 68.95 kPa
Maximum Pressure	7 PSI	7 - 10 PSI
Maximum Pressure	-	30 - 120 PSI
Maximum Pressure	-	206.84 - 827.37 kPa
Maximum Pressure	-	-120 PSI
Maximum Pressure	-	-827.37 kPa
Mounting Type	Through Hole	Through Hole
Operating Pressure	-	34.47 - 689.48 kPa
Operating Pressure	-	5 - 100 PSI
Operating Pressure	-	15 PSI
Operating Pressure	-	103.42 kPa
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output [Max]	15 mV	15 - 83 mV
Output [Min]	0 mV	0 mV
Output Type	Analog Voltage	Analog Voltage
Package / Case	Same Side, Dual Ports, 6-DIP	Same Side, Dual Ports, 6-DIP
Package / Case	0.6 in	0.6 in
Package / Case	15.24 mm	15.24 mm
Port Size	Dual, Tube, Male	Dual, Tube, Male
Port Size	2.24 mm	2.24 mm
Port Size	0.09 "	0.09 "
Port Style	Barbed	Barbed
Pressure Type	Differential	Differential
Supplier Device Package	6-DIP	6-DIP
Termination Style	PC Pin	PC Pin
Voltage - Supply	20 V	20 V

MLDX Series

SENSOR 100PSIA 0.09" .083V 6DIP

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply	Output [Max]	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Features	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Port Style	Mounting Type	Package / Case	Package / Case	Package / Case	Output Type	Accuracy	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure	Maximum Pressure	Pressure Type	Maximum Pressure [Min]	Maximum Pressure [Min]
Amphenol All Sensors Corporation MLDX-100A-DX01-N	120 PSI	827.37 kPa	20 V	83 mV	689.48 kPa	100 PSI	Dual, Male, Tube	2.24 mm	0.09 "	Temperature Compensated	PC Pin	85 °C	-40 °C	6-DIP	Barbed	Through Hole	6-DIP, Dual Ports, Same Side	0.6 in	15.24 mm	Analog Voltage	0.5 %
Amphenol All Sensors Corporation MLDX-015A-DX01-N	30 PSI	206.84 kPa	20 V	75 mV			Dual, Male, Tube	2.24 mm	0.09 "	Temperature Compensated	PC Pin	85 °C	-40 °C	6-DIP	Barbed	Through Hole	6-DIP, Dual Ports, Same Side	0.6 in	15.24 mm	Analog Voltage	0.5 %	15 PSI	103.42 kPa
Amphenol All Sensors Corporation MLDX-005D-DX01-N			20 V	50 mV	34.47 kPa	5 PSI	Dual, Male, Tube	2.24 mm	0.09 "	Temperature Compensated	PC Pin	85 °C	-40 °C	6-DIP	Barbed	Through Hole	6-DIP, Dual Ports, Same Side	0.6 in	15.24 mm	Analog Voltage	0.5 %			68.95 kPa	10 PSI	Differential
Amphenol All Sensors Corporation MLDX-100D-DX01-P	120 PSI	827.37 kPa	20 V	83 mV	689.48 kPa	100 PSI	Dual, Male, Tube	2.24 mm	0.09 "	Temperature Compensated	PC Pin	85 °C	-40 °C	6-DIP	Barbed	Through Hole	6-DIP, Dual Ports, Same Side	0.6 in	15.24 mm	Analog Voltage	0.5 %					Differential	-120 PSI	-827.37 kPa
Amphenol All Sensors Corporation MLDX-001D-DX01-N			20 V	15 mV			Dual, Male, Tube	2.24 mm	0.09 "	Temperature Compensated	PC Pin	85 °C	-40 °C	6-DIP	Barbed	Through Hole	6-DIP, Dual Ports, Same Side	0.6 in	15.24 mm	Analog Voltage	0.3 %			48.26 kPa	7 PSI	Differential
