L717HDE15POL2

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 15P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

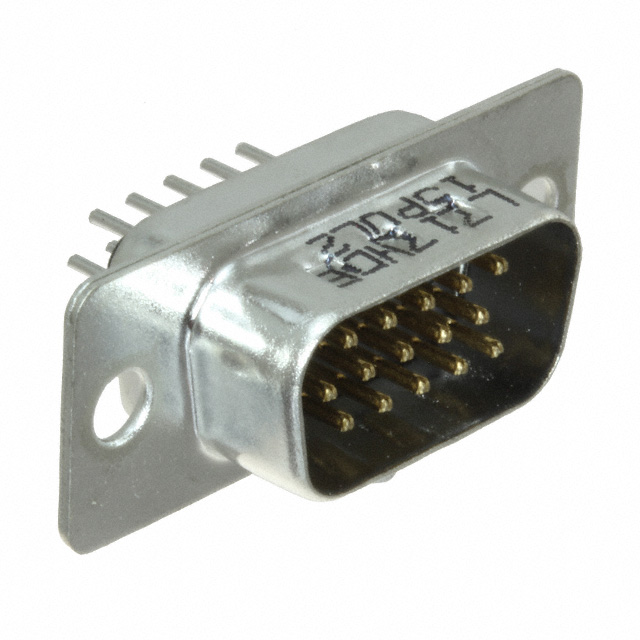

L717HDE15POL2

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 15P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717HDE15POL2

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VDC

L717HDE15 Series

Part	Material Flammability Rating	Voltage Rating	Contact Finish	Connector Style	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Features	Termination	Contact Material	Flange Feature	Contact Type	Mounting Type	Current Rating (Amps)	Color	Contact Form	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L717HDE15POL2	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Grounding Indents	Solder	Brass	Housing/Shell (Unthreaded)	Signal	Through Hole	3 A	Black	Stamped	Male Pins Plug	105 ░C	-55 °C	Flash	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L717HDE15PVF	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Grounding Indents		Brass	Female Screwlock (4-40) Mating Side	Signal	Free Hanging (In-Line)	3 A		Stamped	Male Pins Plug	155 °C	-55 °C	Flash	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L717HDE15PVFM	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Grounding Indents		Brass	Female Screwlock (M3) Mating Side	Signal	Free Hanging (In-Line)	3 A		Stamped	Male Pins Plug	155 °C	-55 °C	Flash	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L717HDE15PVFMC309	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Grounding Indents		Brass	Female Screwlock (M3) Mating Side	Signal	Free Hanging (In-Line)	3 A		Stamped	Male Pins Plug	155 °C	-55 °C		Thermoplastic Glass Filled	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717HDE15PD1CH4R	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Board Lock Grounding Indents Grounding Tabs	Solder	Brass	4-40 Board Side	Signal	Through Hole Right Angle	3 A	Black	Stamped	Male Pins Plug	105 ░C	-55 °C	Flash	Thermoplastic Glass Filled			8.89 mm	0.35 in
Amphenol ICC (Commercial Products) L717HDE15PD1CO4R	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Grounding Indents	Solder	Brass	4-40 Board Side	Signal	Through Hole Right Angle	3 A		Stamped	Male Pins Plug	155 °C	-55 °C	Flash	Thermoplastic Glass Filled			8.89 mm	0.35 in
Amphenol ICC (Commercial Products) L717HDE15PD1CH4RC309	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Board Lock Grounding Indents Grounding Tabs	Solder	Brass	4-40 Board Side	Signal	Through Hole Right Angle	3 A	Black	Stamped	Male Pins Plug	105 ░C	-55 °C		Thermoplastic Glass Filled	0.76 Ám	30 Áin	8.89 mm	0.35 in
Amphenol ICC (Commercial Products) L717HDE15PVFC309	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Grounding Indents		Brass	Female Screwlock (4-40) Mating Side	Signal	Free Hanging (In-Line)	3 A		Stamped	Male Pins Plug	155 °C	-55 °C		Thermoplastic Glass Filled	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717HDE15PD1CH3RC309	UL94 V-0	250 VDC	Gold	D-Sub High Density	3	DE E	1	High Density	15	Board Lock Grounding Indents Grounding Tabs	Solder	Brass	Board Side (M3)	Signal	Through Hole Right Angle	3 A	Black	Stamped	Male Pins Plug	105 ░C	-55 °C		Thermoplastic Glass Filled	0.76 Ám	30 Áin	8.89 mm	0.35 in
