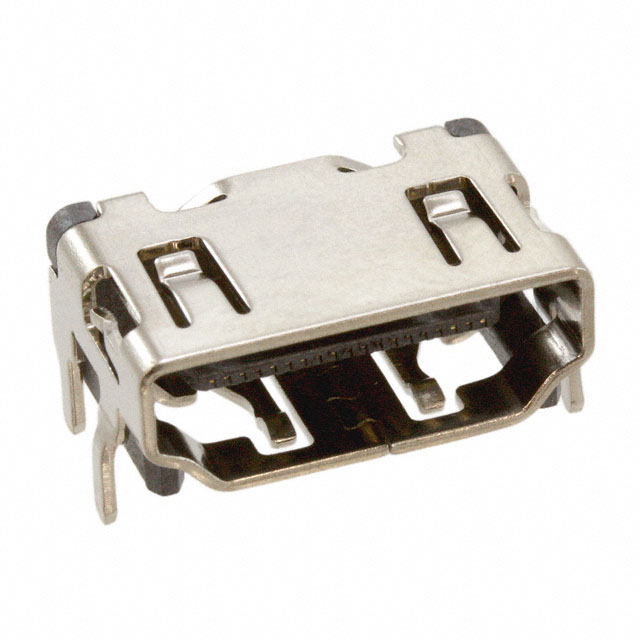

10029449-111RLF - 10029449-111RLF

10029449-111RLF

Active
Amphenol ICC (FCI)

CONN RCPT 1.4 HDMI 19POS SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-309 Other Related DocumentsDatasheet+1
10029449-111RLF - 10029449-111RLF

10029449-111RLF

Active
Amphenol ICC (FCI)

CONN RCPT 1.4 HDMI 19POS SMD R/A

Deep-Dive with AI

Documentsgs-12-309 Other Related DocumentsDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification10029449-111RLF
Connector TypeHDMI
Contact FinishGold
Current Rating (Amps)0.5 A
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mating Cycles10000
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Surface Mount, Right Angle
Number of Contacts [custom]19
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-20 C
Shell/Shielding MaterialBrass
ShieldingShielded
SpecificationsHDMI 1.4
TerminationSolder
Voltage - Rated40 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.50
10$ 1.15
25$ 1.03
50$ 0.95
100$ 0.88
Digi-Reel® 1$ 1.50
10$ 1.15
25$ 1.03
50$ 0.95
100$ 0.88
Tape & Reel (TR) 400$ 0.77
800$ 0.70
1200$ 0.67
2000$ 0.64
2800$ 0.62
4000$ 0.60
10000$ 0.59

Description

General part information

10029449 Series

HDMI HDMI 1.4 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
