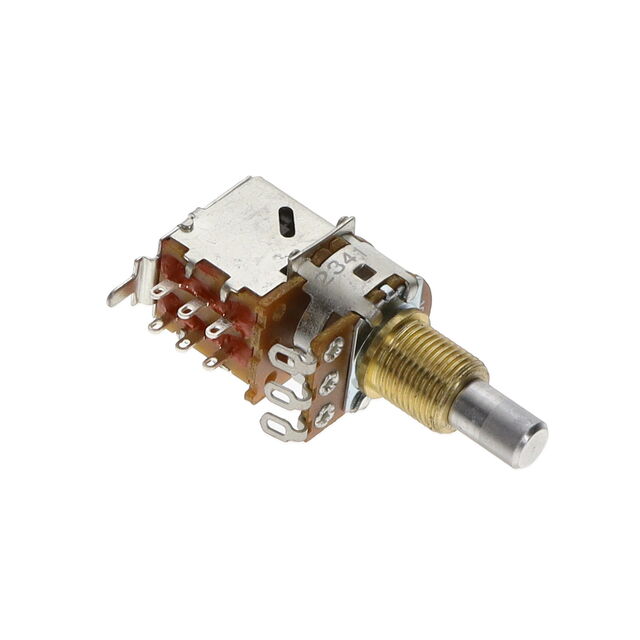

PDB183-GTR02-105A2

Active

Bourns Inc.

POT 1M OHM 1/10W CARBON LOG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PDB183-GTR02-105A2

Active

Bourns Inc.

POT 1M OHM 1/10W CARBON LOG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDB183-GTR02-105A2

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	19 mm
Actuator Length [z]	0.748 in
Actuator Type	Round
Adjustment Type	User Defined
Built in Switch	Push-Pull, DPDT
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.1 W
Power (Watts)	0.1 W
Resistance (Ohms)	1M
Resistive Material	Carbon
Rotation	300 ░
Size - Body	Round
Size - Body [diameter]	17 mm
Size - Body [diameter]	0.669 in
Taper	Logarithmic
Termination Style	Solder Lug
Tolerance	20 %

PDB183 Series

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Built in Switch	Termination Style	Power (Watts)	Power (Watts)	Size - Body [diameter]	Size - Body	Size - Body [diameter]	Resistive Material	Taper	Adjustment Type	Number of Gangs	Resistance (Ohms)	Number of Turns	Actuator Type	Actuator Length	Actuator Length [z]	Tolerance	Resistance (Ohms)	Bushing Thread	Bushing Thread	Actuator Length [x]	Actuator Length [x]	Power (Watts)	Actuator Length [z]
Bourns Inc. PDB183-GTR03-254A2	0.236 in	6 mm	300 ░	DPDT Push-Pull	Board Locks PC Pins	0.1 W	0.1 W	17 mm	Round	0.669 in	Carbon	Logarithmic	Side Adjustment	1	250k	1	Knurled and Slotted	19 mm	0.748 in	20 %
Bourns Inc. PDB183-GTR11-504A2	0.236 in	6 mm	300 ░	DPDT Push-Pull	Solder Lug	0.1 W	0.1 W	17 mm	Round	0.669 in	Carbon	Logarithmic	User Defined	1		1	Knurled and Slotted	19 mm	0.748 in	20 %	500 kOhms
Bourns Inc. PDB183-S425K-105C1	0.236 in	6 mm	300 ░	DPDT Push-Pull	Solder Lug	0.1 W	0.1 W	17 mm	Round	0.669 in	Carbon	Reverse Logarithmic	User Defined	1	1M	1	Knurled and Slotted			20 %		0.75	M7	0.984 in	25 mm
Bourns Inc. PDB183-GTR01-504B0	0.236 in	6 mm	300 ░	DPDT Push-Pull	Solder Lug	0.2 W		17 mm	Round	0.669 in	Carbon	Linear	User Defined	1		1	Knurled and Slotted	19 mm	0.748 in	20 %	500 kOhms					1/5
Bourns Inc. PDB183-GTR31-105A2	0.236 in	6 mm	300 ░	DPDT Push-Pull	Solder Lug	0.1 W	0.1 W	17 mm	Round	0.669 in	Carbon	Logarithmic	User Defined	1	1M	1	Knurled and Slotted			20 %				1.083 in	27.5 mm
Bourns Inc. PDB183-GTR01-104A3	0.236 in	6 mm	300 ░	DPDT Push-Pull	Solder Lug	0.1 W	0.1 W	17 mm	Round	0.669 in	Carbon	Logarithmic	User Defined	1		1	Knurled and Slotted	19 mm	0.748 in	20 %	100 kOhms
Bourns Inc. PDB183-GTR02-504A2	0.236 in	6 mm	300 ░	DPDT Push-Pull	Solder Lug	0.1 W	0.1 W	17 mm	Round	0.669 in	Carbon	Logarithmic	User Defined	1		1	Round	19 mm	0.748 in	20 %	500 kOhms
Bourns Inc. PDB183-GTR02-105A2	0.236 in	6 mm	300 ░	DPDT Push-Pull	Solder Lug	0.1 W	0.1 W	17 mm	Round	0.669 in	Carbon	Logarithmic	User Defined	1	1M	1	Round	19 mm	0.748 in	20 %
Bourns Inc. PDB183-GTR01-105B0	0.236 in	6 mm	300 ░	DPDT Push-Pull	Solder Lug	0.2 W		17 mm	Round	0.669 in	Carbon	Linear	User Defined	1	1M	1	Knurled and Slotted	19 mm	0.748 in	20 %						1/5
Bourns Inc. PDB183-K420K-254A1	0.236 in	6 mm	300 ░	DPDT Push-Pull	PC Pins	0.1 W	0.1 W	17 mm	Round	0.669 in	Carbon	Logarithmic	Side Adjustment	1	250k	1	Knurled and Slotted		0.787 in	20 %		0.75	M7				20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.53
		10	$ 4.65
		25	$ 5.28
		40	$ 4.96
		100	$ 3.90
		300	$ 3.66
		500	$ 3.45
		1000	$ 3.27

Description

General part information

PDB183 Series

1M Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.1W, 1/10W Solder Lug
