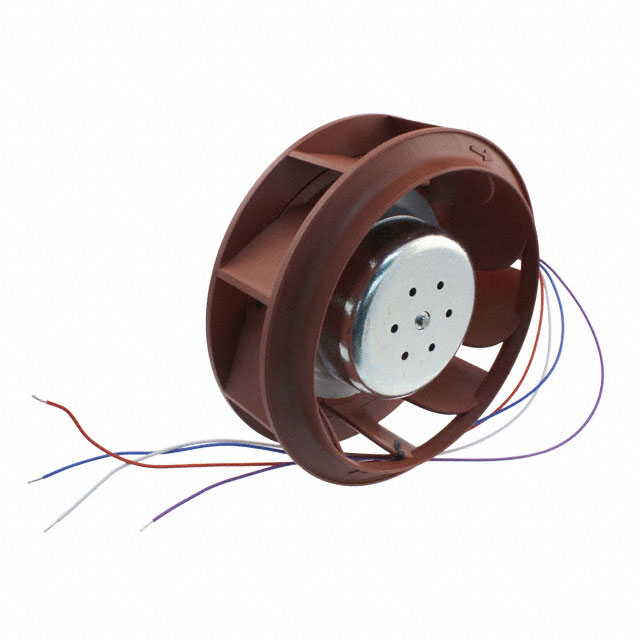

RER120-26/18/2TDP

Active

ebm-papst Inc.

FAN IMP MTRZD 120X54MM 48VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 120X54MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER120-26/18/2TDP

Air Flow	6.43 m³/min
Air Flow	229.5 CFM
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Plastic, Fiberglass Reinforced
Power (Watts)	92 W
RPM	6300 RPM
Size / Dimension [diameter]	120 mm
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	0.95 lb
Weight	430.91 g
Width [y]	54 mm

Part	Material - Blade	Size / Dimension [diameter]	Width [y]	Bearing Type	Features	Termination	RPM	Air Flow	Air Flow	Power (Watts)	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Voltage - Rated	Voltage - Rated [custom]	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. RER120-26/14/2TDP	Plastic Fiberglass Reinforced	120 mm	54 mm	Ball	PWM Control Speed Sensor (Tach)	4 Wire Leads	6100 RPM	221.9 CFM	6.21 m³/min	78 W	Motorized Impellers	16 VDC	32 VDC	0.95 lb	430.91 g	24 VDC
ebm-papst Inc. RER120-26/18/2TDP	Plastic Fiberglass Reinforced	120 mm	54 mm	Ball	PWM Control Speed Sensor (Tach)	4 Wire Leads	6300 RPM	229.5 CFM	6.43 m³/min	92 W	Motorized Impellers	36 VDC	60 V	0.95 lb	430.91 g		48 VDC
ebm-papst Inc. RER120-26/14/2TDMP	Plastic Fiberglass Reinforced	120 mm	54 mm	Ball	PWM Control Speed Sensor (Tach)	4 Wire Leads	5200 RPM	188 CFM	5.26 m³/min	51 W	Motorized Impellers	16 VDC	32 VDC	0.95 lb	430.91 g	24 VDC		60000 Hrs	60 °C	-20 °C	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 135.76

General part information

Fan Motorized Impellers 48VDC Round - 120mm Dia Ball 229.5 CFM (6.43m³/min) 4 Wire Leads
