STM32H573MIY3QTR

Active

STMicroelectronics

HIGH-PERFORMANCE, ARM CORTEX-M33 WITH TRUSTZONE, MCU WITH 2-MBYTE FLASH, 640-KBYTE RAM, 250 MHZ CPU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

STM32H573MIY3QTR

Active

STMicroelectronics

HIGH-PERFORMANCE, ARM CORTEX-M33 WITH TRUSTZONE, MCU WITH 2-MBYTE FLASH, 640-KBYTE RAM, 250 MHZ CPU

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32H573MIY3QTR

Connectivity	UART/USART, I2C, USB OTG, SPI, QSPI, SPDIF, MMC/SD/SDIO, IrDA, LINbus, MDIO, SAI, CANbus, Ethernet
Core Processor	ARM® Cortex®-M33
Core Size	32-Bit
Data Converters	A/D 16x12b SAR, D/A 2x12b
Mounting Type	Surface Mount
Number of I/O	57
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal

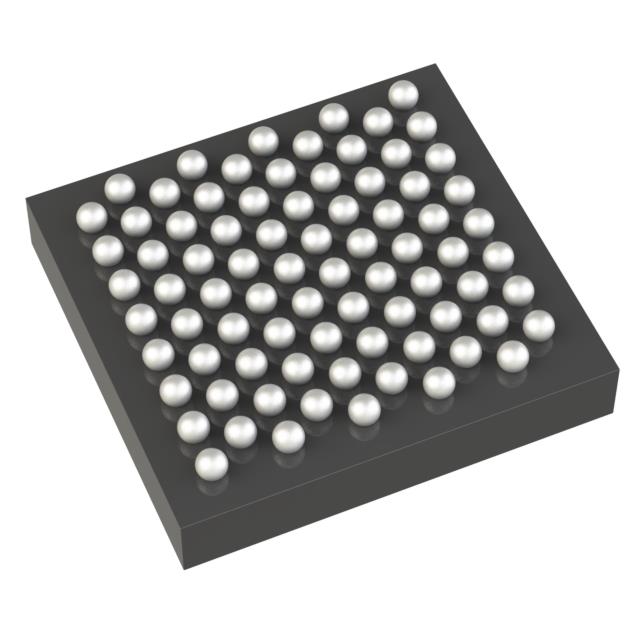

Package / Case	80-UFBGA, WLCSP
Peripherals	Voltage Detect, WDT, DMA, Brown-out Detect/Reset, PDR, POR, TRNG, PWM, SHA, I2S
Program Memory Size	2 MB
Program Memory Type	FLASH
RAM Size	640 K
Speed	250 MHz
Supplier Device Package	80-WLCSP
Supplier Device Package [x]	3.5
Supplier Device Package [y]	3.27
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

STM32H573I-DK Series

High-performance, Arm Cortex-M33 with TrustZone, MCU with 2-Mbyte Flash, 640-Kbyte RAM, 250 MHz CPU

Part	Program Memory Type	RAM Size	Connectivity	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Speed	Mounting Type	Package / Case	Peripherals	Core Processor	Core Size	Number of I/O	Data Converters	Supplier Device Package	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [y]	Supplier Device Package [x]	Interconnect System	Utilized IC / Part	Board Type	Suggested Programming Environment	Type	Platform	Contents
STMicroelectronics STM32H573IIT6	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	176-LQFP	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	136	A/D 20x12b SAR D/A 2x12b	176-LQFP (24x24)	2 MB	85 °C	-40 °C
STMicroelectronics STM32H573VIT6TR	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	100-LQFP	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	80	A/D 16x12b SAR D/A 2x12b	100-LQFP (14x14)	2 MB	85 °C	-40 °C
STMicroelectronics STM32H573RIT6	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	64-LQFP	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	53	A/D 16x12b SAR D/A 2x12b	64-LQFP (10x10)	2 MB	85 °C	-40 °C
STMicroelectronics STM32H573MIY3QTR	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	80-UFBGA WLCSP	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	57	A/D 16x12b SAR D/A 2x12b	80-WLCSP	2 MB	125 °C	-40 °C	3.27	3.5
STMicroelectronics STM32H573RIV6	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	68-VFQFN Exposed Pad	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	53	A/D 16x12b SAR D/A 2x12b	68-VFQFPN (8x8)	2 MB	85 °C	-40 °C
STMicroelectronics STM32H573VIT6	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	100-LQFP	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	80	A/D 16x12b SAR D/A 2x12b	100-LQFP (14x14)	2 MB	85 °C	-40 °C
STMicroelectronics STM32H573IIK6TR	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	201-UFBGA	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	140	A/D 20x12b SAR D/A 2x12b	176+25UFBGA (10x10)	2 MB	85 °C	-40 °C
STMicroelectronics STM32H573AII3Q	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	169-UFBGA	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	134	A/D 20x12b SAR D/A 2x12b	169-UFBGA (7x7)	2 MB	125 °C	-40 °C
STMicroelectronics STM32H573IIT3Q	FLASH	640 K	CANbus Ethernet I2C IrDA LINbus MDIO MMC/SD/SDIO QSPI SAI SPDIF SPI UART/USART USB OTG	External Internal	3.6 V	1.71 V	250 MHz	Surface Mount	176-LQFP	Brown-out Detect/Reset DMA I2S PDR POR PWM SHA TRNG Voltage Detect WDT	ARM® Cortex®-M33	32-Bit	139	A/D 20x12b SAR D/A 2x12b	176-LQFP (24x24)	2 MB	125 °C	-40 °C
STMicroelectronics STM32H573I-DK								Fixed			ARM® Cortex®-M33										Arduino R3 Shield Pmod STMod+	STM32H573II	Evaluation Platform	IAR EW Keil MDK STM32Cube	MCU 32-Bit	Discovery	Board(s) LCD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.43
		10	$ 7.34
		25	$ 6.82
		100	$ 6.25
		250	$ 5.98
		500	$ 5.81
		1000	$ 5.67
	Digi-Reel®	1	$ 9.43
		10	$ 7.34
		25	$ 6.82
		100	$ 6.25
		250	$ 5.98
		500	$ 5.81
		1000	$ 5.67
	Tape & Reel (TR)	5000	$ 5.16

Description

General part information

STM32H573I-DK Series

The STM32H573xx devices are high-performance microcontrollers of the STM32H5 series, based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 250 MHz.

The Cortex®-M33 core features a single-precision floating-point unit (FPU), which supports all the Arm®single-precision data-processing instructions and all the data types.

The Cortex®-M33 core implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application security.
