122138RP

Active

Amphenol RF

CONN RP-TNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-TNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	122138RP

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

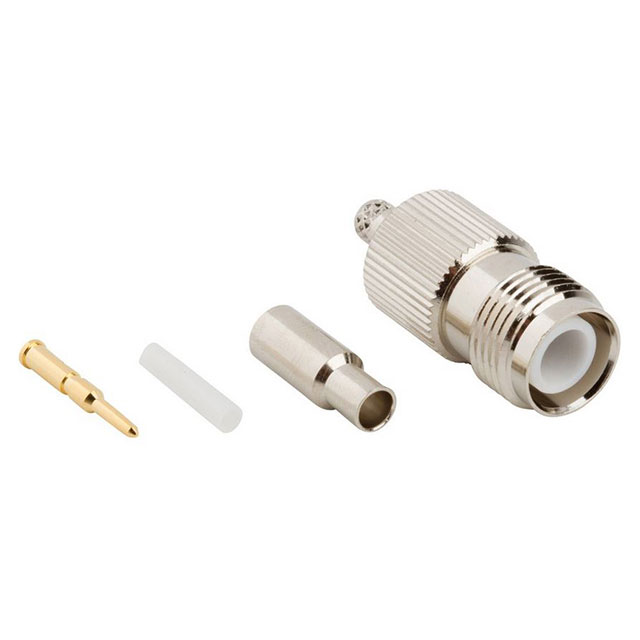

Includes	1 Connector, 1 Sleeve, 1 Ferrule, 1 Contact
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mating Cycles	Cable Group	Mounting Type	Shield Termination	Connector Style	Center Contact Plating	Housing Color	Dielectric Material	Contact Termination	Includes	Frequency - Max [Max]	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Connector Type	Body Finish	Body Material	Center Contact Material	Impedance
Amphenol RF 122138RP	500	188 188A 316 LMR-100 M17/119-RG174 RG-174	Free Hanging (In-Line)	Crimp	RP-TNC	Gold	Silver	Polytetrafluoroethylene (PTFE)	Crimp	1 Connector 1 Contact 1 Ferrule 1 Sleeve	11 GHz	500 V	-65 ░C	165 °C	1	Jack Male Pin	Nickel	Brass	Brass	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
