966754-6

Active

TE Connectivity AMP Connectors

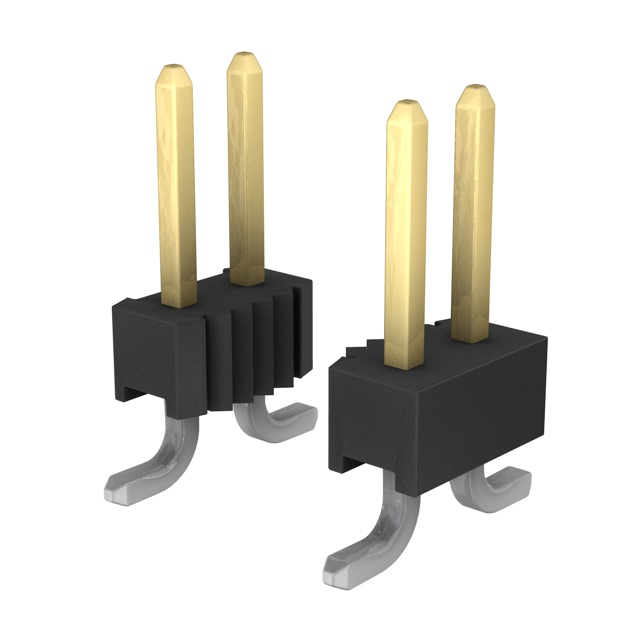

CONN HEADER SMD 12POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER SMD 12POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	966754-6

Connector Type	Breakaway, Header
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10200	$ 2.42

CONN HEADER SMD 12POS 2.54MM

Part	Number of Positions Loaded	Current Rating (Amps)	Contact Shape	Insulation Material	Features	Number of Positions	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Mounting Type	Shrouding	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Termination	Insulation Color	Number of Rows	Connector Type
TE Connectivity AMP Connectors 966754-6	All	5 A	Square	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Pick and Place	12	0.1 in	2.54 mm	-65 ░C	105 ░C	Board to Board, Cable	Surface Mount	Unshrouded	Male Pin	2.54 mm	0.1 in	Push-Pull	Solder	Black	2	Breakaway, Header

General part information

Connector Header Surface Mount 12 position 0.100" (2.54mm)
