8722 060U500
ActiveBelden Inc.
2#20 FS PVC,2#20 PVC PVC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8722 060U500
ActiveBelden Inc.
2#20 FS PVC,2#20 PVC PVC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8722 060U500 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.87 mm |
| Jacket (Insulation) Diameter [diameter] | 0.231 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.028 in |
| Jacket (Insulation) Thickness | 0.711 mm |
| Jacket Color | Chrome |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style CMG |
| Shield Coverage | 100 % |
| Shield Material | Polyester, Aluminum |
| Shield Type | Foil |
| Usage | Audio, Instrumentation, Control |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
8722 Series
| Part | Usage | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Voltage | Features | Number of Conductors | Conductor Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Length [x] | Length [x] | Conductor Insulation | Shield Material | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | Audio Control Instrumentation | UL Style CMG | -20 C | 80 C | Multi-Pair | 300 V | Drain Wire | 4 | Copper Tinned | Foil | 28 | 7 | 20 AWG | 0.028 in | 0.711 mm | 100 % | 500 ' | 152.4 m | Poly-Vinyl Chloride (PVC) | Aluminum Polyester | Chrome | Poly-Vinyl Chloride (PVC) | 5.87 mm | 0.231 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 2.60 | |
Description
General part information
8722 Series

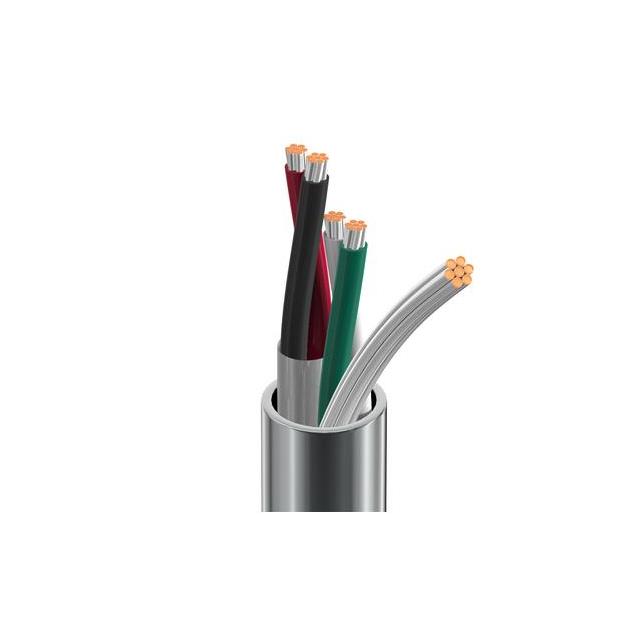

4 (2 Pair) Conductor Multi-Pair Cable Chrome 20 AWG Foil 500.0' (152.4m)
