Specification	282833-4

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - UL	15 A
Header Orientation	Vertical
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.079 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	4
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch	0.394 in
Positions Per Level	4
Termination Style	Solder
Type	Male Pins, Unshrouded, Header
Voltage - UL	600 V

282833 Series

Part	Contact Material	Insulation Height	Contact Tail Length	Housing Material	Material Flammability Rating	Termination Style	Contact Mating Finish	Type	Color	Number of Levels	Pitch	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Current - UL	Number of Positions	Header Orientation	Positions Per Level
TE Connectivity AMP Connectors 282833-6	Brass	0.079 in	0.138 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	Solder	Tin	Header Male Pins Unshrouded	Green	1	0.394 in	Through Hole	-40 °C	110 °C	600 V	15 A	6	Vertical	6
TE Connectivity AMP Connectors 282833-4	Brass	0.079 in	0.138 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	Solder	Tin	Header Male Pins Unshrouded	Green	1	0.394 in	Through Hole	-40 °C	110 °C	600 V	15 A	4	Vertical	4

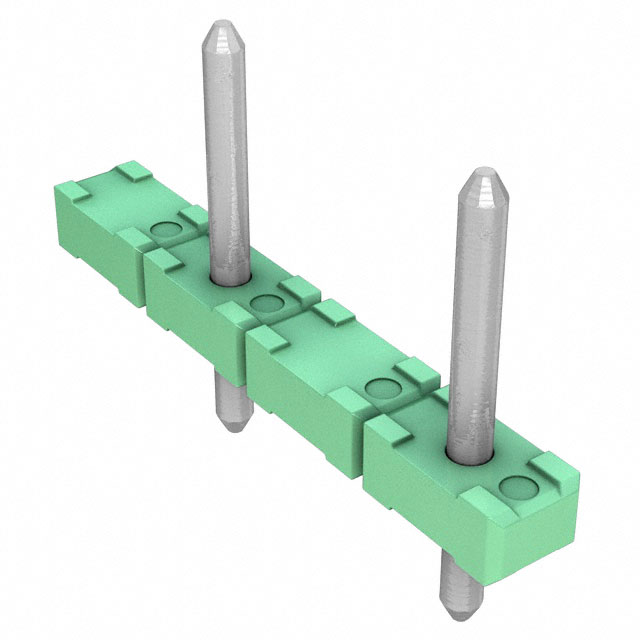

TE Connectivity AMP Connectors 282833-2	Brass	0.079 in	0.138 in	Nylon 6/6 PA66 Polyamide	UL94 V-0	Solder	Tin	Header Male Pins Unshrouded	Green	1	0.394 in	Through Hole	-40 °C	110 °C	600 V	15 A	2	Vertical	2
