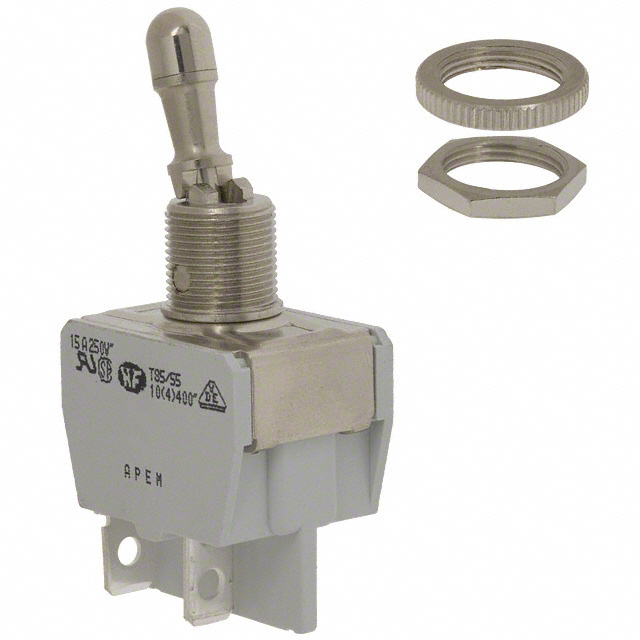

641H/22V

Active

APEM

SWITCH TOGGLE DPST 15A 250V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE DPST 15A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	641H/22V

Actuator Length [x]	19.4 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	DPST
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

Part	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Bushing Thread	Switch Function	Voltage Rating - AC	Actuator Length [x]	Termination Style	Illumination	Circuit	Electrical Life	Actuator Type	Actuator Material	Current Rating (Amps)	Features
APEM 641H/2K	12.2 mm	55 °C	-20 C	M12	0.75	On-Off	250 V	17.5 mm	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	DPST	10000 Cycles	Standard Round	Brass Nickel Plated	15 A	Front Panel Sealing
APEM 641H/22V	12.2 mm	55 °C	-20 C	15/32-32		On-Off	250 V	19.4 mm	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	DPST	10000 Cycles	Locking Lever	Brass Nickel Plated	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPST Panel Mount
