10013057-351200ELF

Obsolete

Amphenol ICC (FCI)

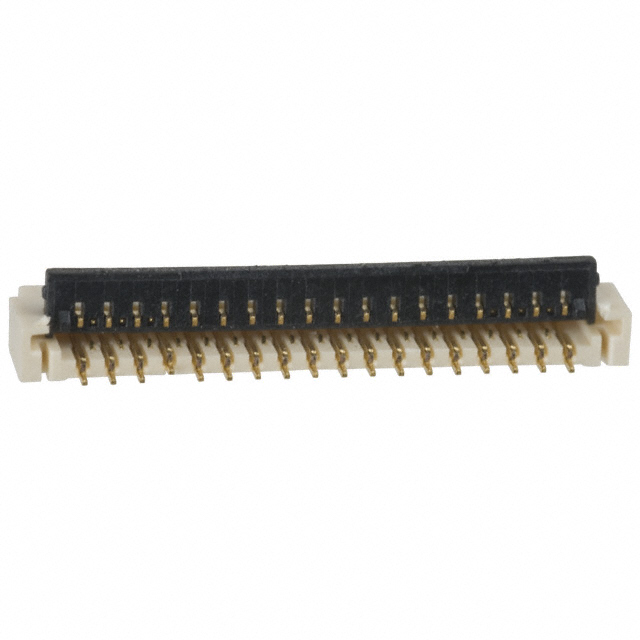

CONN FFC BOTTOM 35POS 0.3MM R/A

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC BOTTOM 35POS 0.3MM R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10013057-351200ELF	10013057 Series

Actuator Color	Black	Black
Actuator Material	Plastic	Plastic
Cable End Type	Notched	Notched
Connector/Contact Type	Contacts, Bottom	Contacts, Bottom
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	0.2 A	0.2 A
Features	Low Insertion Force (LIF)	Low Insertion Force (LIF)
FFC, FCB Thickness	0.2 mm	0.2 mm
Flat Flex Type	FFC	FFC
Height Above Board	0.047 "	0.047 "
Height Above Board	1.2 mm	1.2 mm
Housing Color	White	White
Housing Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled
Locking Feature	Flip Lock	Flip Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	10	10
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	35	35
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.012 in	0.012 in
Pitch [x]	0.3 mm	0.3 mm
Termination	Solder	Solder
Voltage Rating	200 V	200 V

CONN FFC BOTTOM 25POS 0.3MM R/A

Part	Contact Material	Locking Feature	Actuator Material	Height Above Board	Height Above Board	Connector/Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Features	Mounting Type	FFC, FCB Thickness	Cable End Type	Housing Color	Voltage Rating	Pitch [x]	Pitch [x]	Flat Flex Type	Actuator Color	Termination	Current Rating (Amps)	Housing Material	Material Flammability Rating	Contact Finish	Number of Positions
Amphenol ICC (FCI) 10013057-251200ELF	Copper Alloy	Flip Lock	Plastic	0.047 "	1.2 mm	Contacts, Bottom	-25 °C	85 °C	10	Low Insertion Force (LIF)	Surface Mount, Right Angle	0.2 mm	Notched	White	200 V	0.012 in	0.3 mm	FFC	Black	Solder	0.2 A	Thermoplastic, Glass Filled	UL94 V-0	Gold
Amphenol ICC (FCI) 10013057-351200ELF	Copper Alloy	Flip Lock	Plastic	0.047 "	1.2 mm	Contacts, Bottom	-25 °C	85 °C	10	Low Insertion Force (LIF)	Surface Mount, Right Angle	0.2 mm	Notched	White	200 V	0.012 in	0.3 mm	FFC	Black	Solder	0.2 A	Thermoplastic, Glass Filled	UL94 V-0	Gold	35
