ERA.1E.304.CLL

Active

LEMO

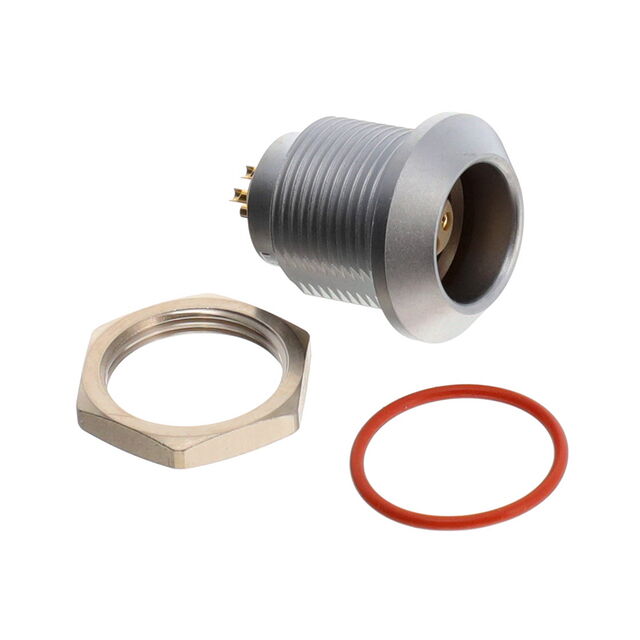

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.1E.304.CLL

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.16
		10	$ 37.80
		25	$ 36.16
		50	$ 35.00
		100	$ 33.83
		250	$ 31.96

Description

General part information

ERA.1E Series

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.1E.304.CLL	ERA.1E Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Receptacle, Female Socket, Receptacle, Female Sockets, Female Sockets, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Alumel, Chromel, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	10 A	7 - 15 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector
Ingress Protection	IP66/IP68	IP68 - Dust Tight, Waterproof, IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	4	1 - 4
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 405
Shield Termination	-	Solder
Shielding	Shielded	Shielded

ERA.1E Series

CONN STR PCB PNL RCPT COAX SKT

Part	Connector Type	Cable Group	Mounting Feature	Dielectric Material	Ingress Protection	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Center Contact Plating	Mating Cycles	Contact Termination	Fastening Type	Includes	Connector Style	Body Material	Shield Termination	Center Contact Material	Impedance	Shell Finish	Shielding	Shell Material	Contact Material	Contact Finish - Mating	Number of Positions	Current Rating (Amps)	Insert Material	Color	Shell Size - Insert	Orientation	Primary Material	Material Flammability Rating	Number of Ports
LEMO ERA.1E.250.CTN	Female Socket, Receptacle	174, 174A, 178B, 188A, 196A, 316B, RG-122	Bulkhead - Rear Side Nut	Polytetrafluoroethylene (PTFE)	IP68 - Dust Tight, Waterproof	Chrome	-55 °C	200 °C	Silver	Gold	1000	Solder Cup	Push-Pull	1 Connector, 1 Nut	Coaxial	Brass	Solder	Beryllium Copper	50 Ohms
LEMO ERA.1E.405.CTL	Receptacle, Female Sockets		Bulkhead - Rear Side Nut		IP66/IP68		-55 °C	200 °C					Push-Pull							Chrome	Shielded	Brass	Bronze	Gold	1	8 A	Polytetrafluoroethylene (PTFE)	Silver	405	Keyed	Metal
LEMO ERA.1E.901.CLK	Female Sockets, Male Pins, Receptacle		Bulkhead - Rear Side Nut		IP66/IP68		-55 °C	200 °C					Push-Pull							Chrome	Shielded	Brass	Alumel, Chromel	Gold	2	15 A	Polyetheretherketone (PEEK)	Silver	302	Keyed	Metal	UL94 V-0
LEMO ERA.1E.302.CLL	Female Sockets, Male Pins, Receptacle		Bulkhead - Rear Side Nut		IP66/IP68		-55 °C	200 °C					Push-Pull							Chrome	Shielded	Brass	Brass, Bronze	Gold	2	15 A	Polyetheretherketone (PEEK)	Silver	302	Keyed	Metal	UL94 V-0
LEMO ERA.1E.303.CLL	Female Sockets, Male Pins, Receptacle		Bulkhead - Rear Side Nut		IP66/IP68		-55 °C	200 °C					Push-Pull							Chrome	Shielded	Brass	Brass, Bronze	Gold		10 A	Polyetheretherketone (PEEK)	Silver	303	Keyed	Metal	UL94 V-0
LEMO ERA.1E.305.CLL	Female Sockets, Male Pins, Receptacle		Bulkhead - Rear Side Nut		IP66/IP68		-55 °C	200 °C					Push-Pull							Chrome	Shielded	Brass	Brass, Bronze	Gold		7 A, 10 A	Polyetheretherketone (PEEK)	Silver	305	Keyed	Metal	UL94 V-0
LEMO ERA.1E.304.CLL	Female Sockets, Male Pins, Receptacle		Bulkhead - Rear Side Nut		IP66/IP68		-55 °C	200 °C					Push-Pull							Chrome	Shielded	Brass	Brass, Bronze	Gold	4	10 A	Polyetheretherketone (PEEK)	Silver	304	Keyed	Metal	UL94 V-0
LEMO ERA.1E.250.CTL	Female Socket, Receptacle	174, 174A, 178B, 188A, 196A, 316B, RG-122	Bulkhead - Rear Side Nut	Polytetrafluoroethylene (PTFE)	IP68 - Dust Tight, Waterproof	Chrome	-55 °C	200 °C	Silver	Gold	1000	Solder Cup	Push-Pull	1 Connector, 1 Nut	Coaxial	Brass	Solder	Beryllium Copper	50 Ohms														1
