73007W 008100

Active

Belden Inc.

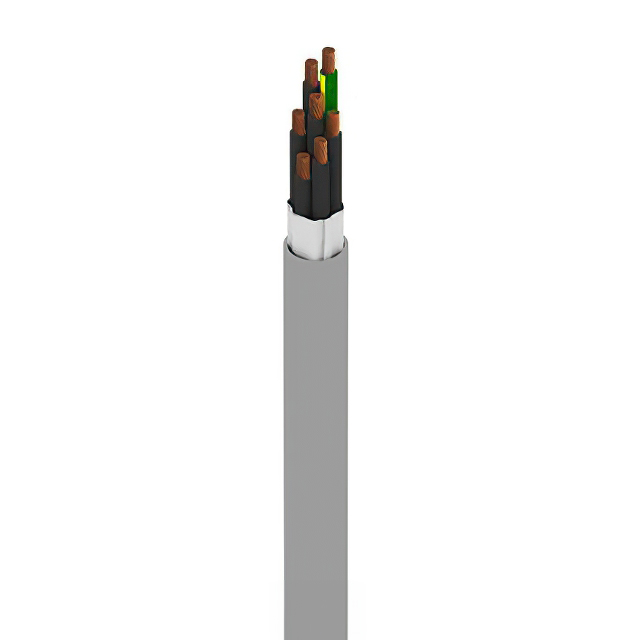

CABLE 7COND 20AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 7COND 20AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	73007W 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	10
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.31 mm
Jacket (Insulation) Diameter [diameter]	0.327 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.038 in
Jacket (Insulation) Thickness	0.965 mm
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	7
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	20 AWG

Part	Voltage	Jacket Color	Cable Type	Features	Ratings	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Number of Conductors	Conductor Material	Wire Gauge	Jacket (Insulation) Material
Belden Inc. 73007W 008100	600 V	Gray	Multi-Conductor	Oil Resistant	UL Style 2587	Poly-Vinyl Chloride (PVC)	30 AWG	10	8.31 mm	0.327 in	0.038 in	0.965 mm	30.5 m	100 ft	7	Copper Bare	20 AWG	Poly-Vinyl Chloride (PVC)
