AR 24-HZW/TN

Active

Assmann WSW Components

CONN IC DIP SOCKET 24POS GOLD

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IC DIP SOCKET 24POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AR 24-HZW/TN

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Contact Resistance	4 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Thermoplastic, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	24
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Wire Wrap
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Contact Material - Mating	Contact Finish - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Resistance	Features	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post	Number of Positions or Pins (Grid)	Current Rating (Amps)	Housing Material	Termination	Type	Type	Type	Material Flammability Rating
Assmann WSW Components AR 24-HZW/TN	Beryllium Copper	Tin	Gold	0.1 in	2.54 mm	Through Hole	200 µin	5.08 µm	4 mOhm	Open Frame	2.54 mm	0.1 in	-40 °C	105 ░C	Beryllium Copper	24	3 A	Polyester Thermoplastic	Wire Wrap	DIP	0.6 in	15.24 mm	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 3.70

General part information

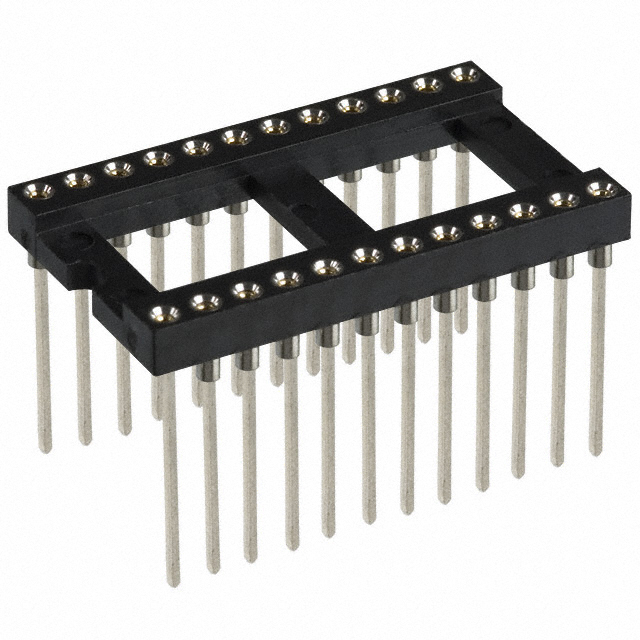

24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
