P-70AAR/D1B
ObsoletePanasonic Industrial Automation Sales

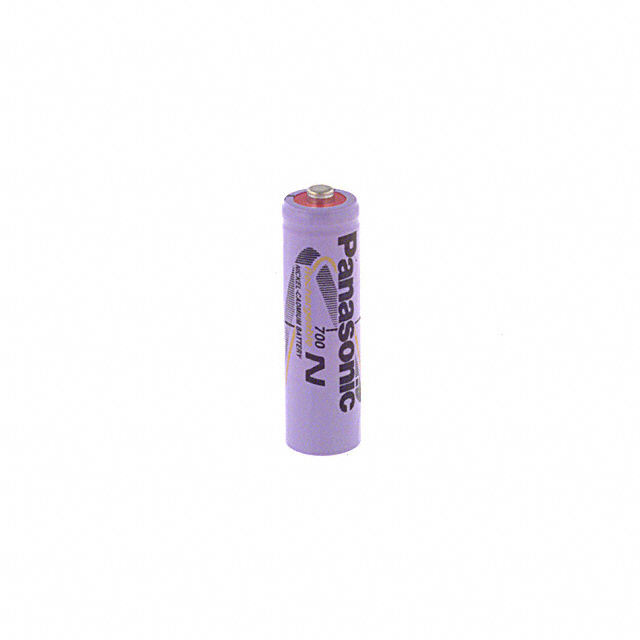

BATTERY NICAD 1.2V 700MAH AA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P-70AAR/D1B
ObsoletePanasonic Industrial Automation Sales
BATTERY NICAD 1.2V 700MAH AA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P-70AAR/D1B |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Nickel Cadmium |
| Capacity | 700 mAh |
| Discharge Rate | 140 mA |
| Size / Dimension [diameter] | 14.5 mm |
| Size / Dimension [diameter] | 0.57 in |
| Size / Dimension [z] | 1.99 in |
| Size / Dimension [z] | 50.5 mm |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
P-70 Series
AA 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 700mAh
Documents
Technical documentation and resources
