5-826656-0

Active

TE Connectivity AMP Connectors

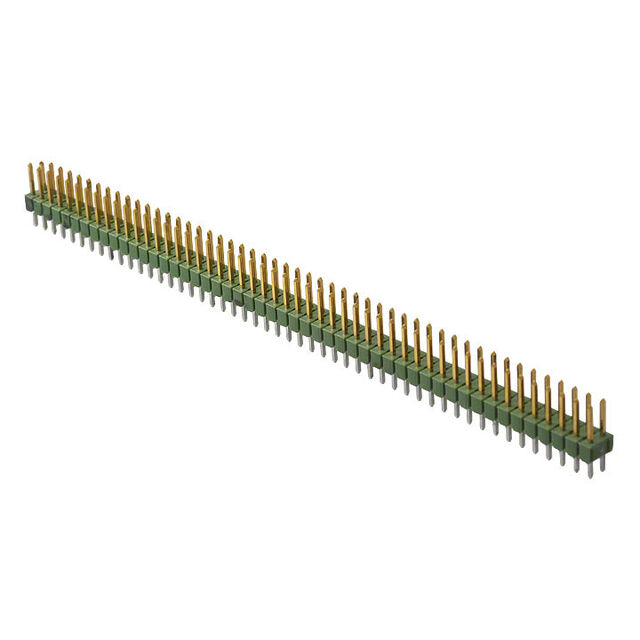

CONN HEADER VERT 100POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

5-826656-0

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 100POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.67
		10	$ 8.43
		150	$ 7.50
		600	$ 7.01
		1050	$ 6.26

Description

General part information

826656 Series

Connector Header Through Hole 100 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-826656-0	826656 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	0.228 in	0.228 in
Contact Length - Mating	5.8 mm	5.8 mm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	100	2 - 100
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.465 in	0.465 in
Overall Contact Length	11.81 mm	11.81 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826656 Series

CONN HEADER VERT 20POS 2.54MM

Part	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Mating	Contact Shape	Number of Rows	Fastening Type	Overall Contact Length	Overall Contact Length	Shrouding	Number of Positions	Mounting Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish - Post	Material Flammability Rating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Material	Style	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Positions
TE Connectivity AMP Connectors 1-826656-0	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	20	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
TE Connectivity AMP Connectors 826656-2	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	4	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
TE Connectivity AMP Connectors 3-826656-6	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	72	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
TE Connectivity AMP Connectors 826656-8	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded		Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin	16
TE Connectivity AMP Connectors 2-826656-0	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	40	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
TE Connectivity AMP Connectors 826656-5	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	10	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
TE Connectivity AMP Connectors 826656-6	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	12	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
TE Connectivity AMP Connectors 5-826656-0	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	100	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
TE Connectivity AMP Connectors 1-826656-4	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	28	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
TE Connectivity AMP Connectors 3-826656-2	0.228 in	5.8 mm	3.2 mm	0.126 in	Gold	Square	2	Push-Pull	0.465 in	11.81 mm	Unshrouded	64	Through Hole	All	0.1 in	2.54 mm	Green	0.099 µm	3.9 µin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	UL94 V-0	Breakaway, Header	3 µm	118.1 µin	5 A	Brass	Board to Board, Cable	Solder	2.54 mm	0.1 in	Male Pin
