Q-2D01K000R0.5M
ActiveAmphenol Custom Cable
CBL ASSY MMCX-NTYPE JK-PL 19.69"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2D01K000R0.5M
ActiveAmphenol Custom Cable
CBL ASSY MMCX-NTYPE JK-PL 19.69"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2D01K000R0.5M |
|---|---|
| 1st Connector | MMCX Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 DB |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 50 cm |
| Length | 19.69 " |
| Overall Impedance | 50 Ohms |
| Style | MMCX to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 211.85 | |
| 25 | $ 207.75 | |||
| 50 | $ 203.64 | |||
| 100 | $ 199.54 | |||
| 250 | $ 195.43 | |||
Description
General part information
Q-2D01K0 Series

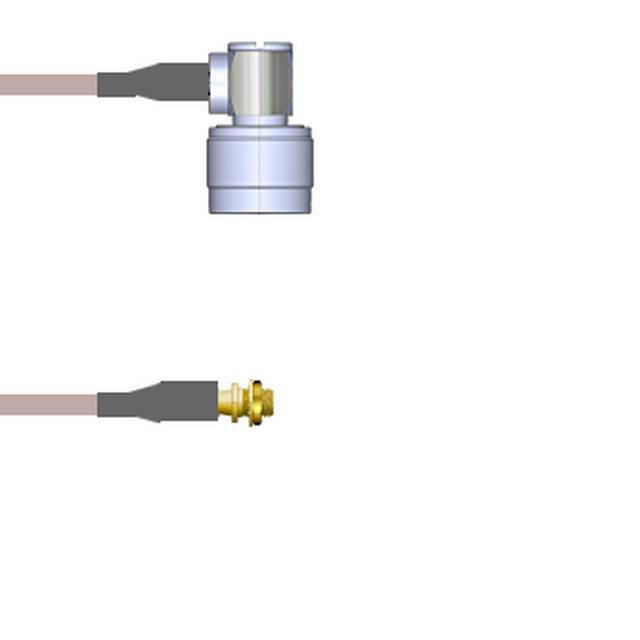

Cable Assembly Coaxial MMCX to N-Type RG-316 DB 19.69" (500.00mm)
Documents
Technical documentation and resources
No documents available
