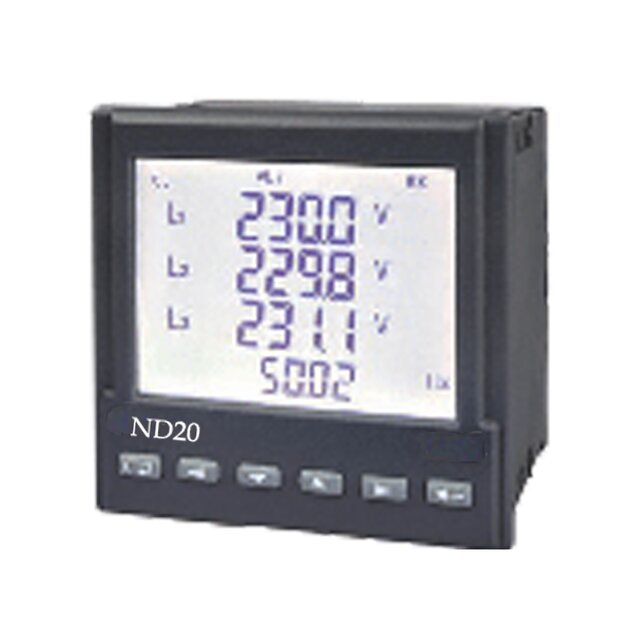

ND20 141100U1

Active

Sifam Tinsley Instrumentation Inc

AMMETER 1A LCD PANEL MOUNT

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

AMMETER 1A LCD PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	ND20 141100U1

Display Type	LCD - Black Characters, Backlight
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range	1 A
Measuring Type	Current (3-Phase), Wattage, Voltage
Number of Characters Per Row	4
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Type	Relay, Analog
Termination Style	Wire Leads
Type	Energy Monitor
Voltage - Supply	300 VDC
Voltage - Supply [Max]	90 VAC
Voltage - Supply [Min]	85 VAC

AMMETER 1A LCD PANEL MOUNT

Part	Number of Characters Per Row	Measuring Range	Ingress Protection	Output Type	Termination Style	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Supply	Measuring Type	Operating Temperature [Max]	Operating Temperature [Min]	Type
Sifam Tinsley Instrumentation Inc ND20 141100U1	4	1 A	IP65 - Dust Tight, Water Resistant	Analog, Relay	Wire Leads	LCD - Black Characters, Backlight	90 VAC	85 VAC	300 VDC	Current (3-Phase), Voltage, Wattage	55 °C	-25 °C	Energy Monitor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 250.00

General part information

Energy Monitor LCD - Black Characters, Backlight Display Panel Mount
