UPD78F1805AK8A2-3B4-G

Active

Renesas Electronics Corporation

16-BIT LOW-POWER MICROCONTROLLERS FOR AUTOMOTIVE BODY APPLICATIONS (NON PROMOTION)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 78K0R/Fx3 User's Manual: Hardware

UPD78F1805AK8A2-3B4-G

Active

Renesas Electronics Corporation

16-BIT LOW-POWER MICROCONTROLLERS FOR AUTOMOTIVE BODY APPLICATIONS (NON PROMOTION)

Deep-Dive with AI

DocumentsDatasheet 78K0R/Fx3 User's Manual: Hardware

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPD78F1805AK8A2-3B4-G	78K0R/Fx3 Series

	-	-
Connectivity	CSI, SPI, UART/USART, I2C, LINbus	CSI, SPI, UART/USART, I2C, LINbus
Core Processor	78 K, 0 R	0 - 78 K
Core Size	16-Bit	16-Bit
Data Converters	A/D 6x10b SAR	A/D 11x10b SAR, A/D 6x10b SAR, A/D, SAR
Data Converters	-	SAR
Data Converters	-	10 b
Data Converters	-	15
Data Converters	-	10 - 16 b
Data Converters	-	10 b
EEPROM Size	16 K	16 K
Mounting Type	Surface Mount	Surface Mount
Number of I/O	23	23 - 66
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	External, Internal	External, Internal
Package / Case	-	48-LQFP, 64-LQFP, 80-LQFP
Peripherals	DMA, LVD, PWM, POR, WDT	DMA, LVD, PWM, POR, WDT
Program Memory Size	32 KB	32 - 256 KB
Program Memory Type	FLASH	FLASH
RAM Size	2K x 8	4K x 8, 2K x 8
RAM Size	-	6 - 16 K
Speed	24 MHz	20 - 24 MHz

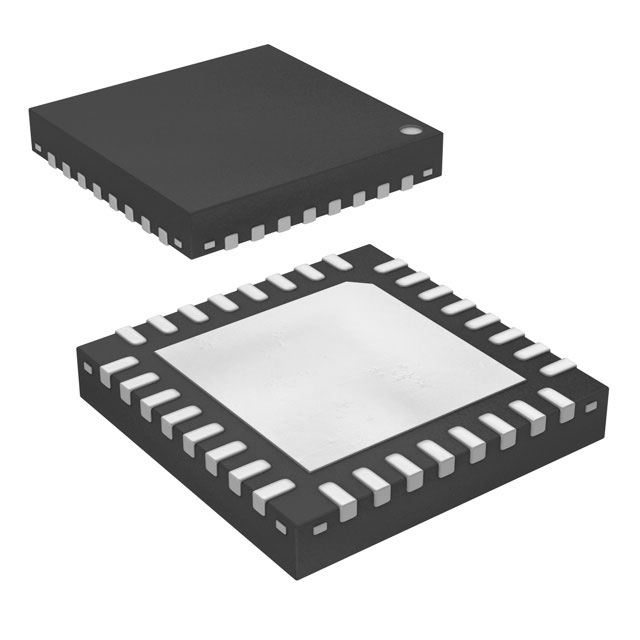

Supplier Device Package	32-HWQFN (5x5)	48-LFQFP (7x7), 64-LFQFP (10x10), 32-HWQFN (5x5), 80-LFQFP (12x12)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V	2.7 V

78K0R/Fx3 Series

16-bit Low-power Microcontrollers for Automotive Body Applications (Non Promotion)

Part	Core Size	Peripherals	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	EEPROM Size	Speed	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Connectivity	Mounting Type	Program Memory Type	Package / Case	Core Processor	Supplier Device Package	Data Converters	Number of I/O	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]	RAM Size	RAM Size	Data Converters
Renesas Electronics Corporation UPD78F1832GBA-GAH-G
Renesas Electronics Corporation UPD78F1814AGAA2-GAM-G	16-Bit	DMA, LVD, POR, PWM, WDT	-40 °C	125 °C	External, Internal	16 K	24 MHz	2.7 V	5.5 V	48 KB	CSI, I2C, LINbus, SPI, UART/USART	Surface Mount	FLASH	48-LQFP	0 R, 78 K	48-LFQFP (7x7)	A/D 11x10b SAR	36
Renesas Electronics Corporation UPD78F1831GBA-GAH-G	16-Bit	DMA, LVD, POR, PWM, WDT	-40 °C	85 °C	External, Internal	16 K	24 MHz	2.7 V	5.5 V	64 KB		Surface Mount	FLASH	64-LQFP	0 R, 78 K	64-LFQFP (10x10)		50 I/O	SAR	10 b	15	4K x 8
Renesas Electronics Corporation UPD78F1827AGAA-GAM-G	16-Bit	DMA, LVD, POR, PWM, WDT	-40 °C	85 °C	External, Internal	16 K	24 MHz	2.7 V	5.5 V	96 KB		Surface Mount	FLASH	48-LQFP	0 R, 78 K	48-LFQFP (7x7)	A/D 11x10b SAR	36					6 K
Renesas Electronics Corporation UPD78F1817AGAA-GAM-G
Renesas Electronics Corporation UPD78F1817AGAA2-GAM-G
Renesas Electronics Corporation UPD78F1806AMCA-CAB-G
Renesas Electronics Corporation UPD78F1805AK8A2-3B4-G	16-Bit	DMA, LVD, POR, PWM, WDT	-40 °C	125 °C	External, Internal	16 K	24 MHz	2.7 V	5.5 V	32 KB	CSI, I2C, LINbus, SPI, UART/USART	Surface Mount	FLASH		0 R, 78 K	32-HWQFN (5x5)	A/D 6x10b SAR	23				2K x 8
Renesas Electronics Corporation UPD78F1826GAA2-GAM-G	16-Bit	DMA, LVD, PWM, WDT	-40 °C	125 °C	Internal		20 MHz	2.7 V	5.5 V	64 KB	CSI, I2C, UART/USART	Surface Mount	FLASH	48-LQFP	0 R, 78 K	48-LFQFP (7x7)	A/D	32				4K x 8		10 b, 11
Renesas Electronics Corporation UPD78F1823AGKA-GAK-G

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	490	$ 5.23

Description

General part information

78K0R/Fx3 Series

The 78K0R/Fx3 Group is supported only for customers who have already adopted these products.
