LX8580A-00CDD

Obsolete

Microsemi Corporation

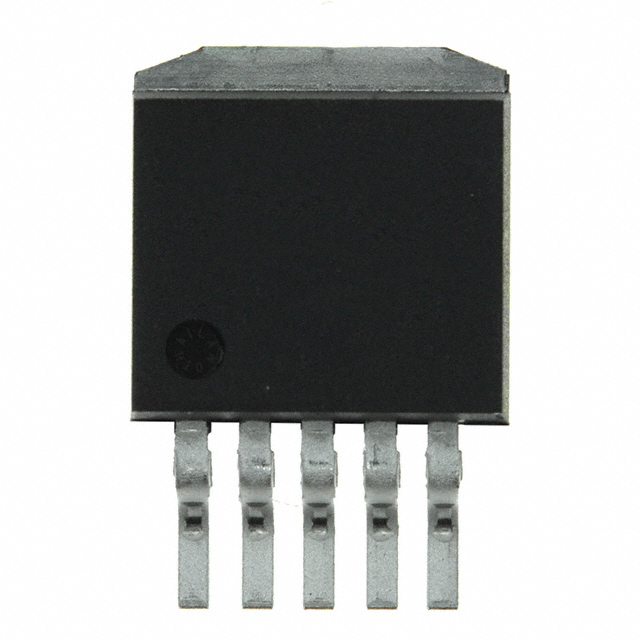

IC REG LIN POS ADJ 7.5A TO263-5

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

IC REG LIN POS ADJ 7.5A TO263-5

Technical Specifications

Parameters and characteristics for this part

Specification	LX8580A-00CDD

Current - Output	7.5 A
Current - Quiescent (Iq)	10 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
Supplier Device Package	TO-263-5
Voltage - Input (Max) [Max]	13 V
Voltage - Output (Max) [Max]	2.85 V
Voltage - Output (Min/Fixed) [Min]	2 V
Voltage Dropout (Max) [Max]	0.7 V

Part	Mounting Type	Voltage - Input (Max) [Max]	Supplier Device Package	Current - Output	Protection Features	Number of Regulators	Operating Temperature [Max]	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed) [Min]	Package / Case	Voltage Dropout (Max) [Max]	Voltage - Output (Max) [Max]	Output Configuration	Output Type
Microsemi Corporation LX8580A-00CP	Through Hole	13 V	TO-220-5	7.5 A	Over Current Over Temperature	1	125 °C	10 mA	2 V	TO-220-5	0.7 V	2.85 V	Positive	Adjustable
Microsemi Corporation LX8580A-00CDD	Surface Mount	13 V	TO-263-5	7.5 A	Over Current Over Temperature	1	125 °C	10 mA	2 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	0.7 V	2.85 V	Positive	Adjustable
Microsemi Corporation LX8580A-00CDF	Surface Mount	13 V	5-SPAK	7.5 A	Over Current Over Temperature	1	125 °C	10 mA	2 V	SPAK-5 (5 Leads + Tab)	0.7 V	2.85 V	Positive	Adjustable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 7.5A TO-263-5
