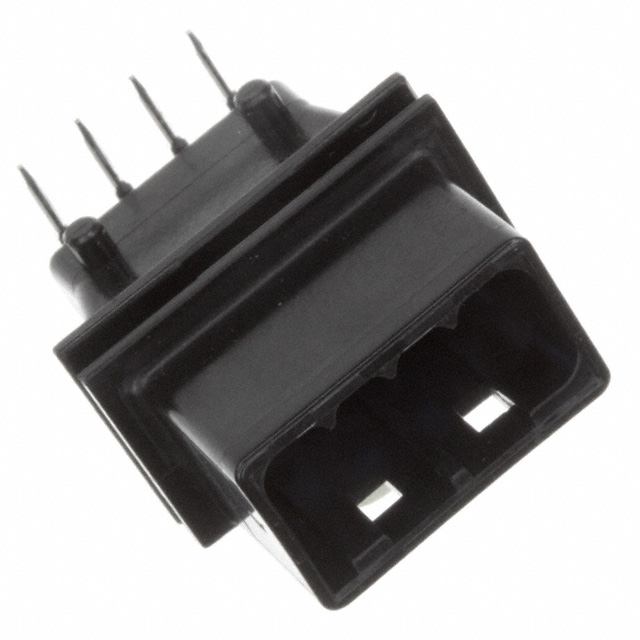

MX44004NF1

Active

JAE Electronics

CONN HEADER BRD EDGE 4POS 3.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER BRD EDGE 4POS 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX44004NF1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Waterproof
Insulation Color	Black
Insulation Height	0.465 in
Insulation Height	11.8 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.138 in
Pitch - Mating	3.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Mounting Type	Contact Shape	Insulation Material	Contact Type	Insulation Color	Number of Rows	Connector Type	Applications	Features	Style	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shrouding	Termination	Current Rating (Amps)	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Fastening Type
JAE Electronics MX44004NF1	Board Edge Right Angle Through Hole	Square	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Black	1	Header	Automotive	Board Guide	Board to Cable/Wire	All	0.465 in	11.8 mm	Tin	4	125 °C	-40 °C	Waterproof	Shrouded - 4 Wall	Solder	3 A	Brass	0.138 in	3.5 mm	0.122 "	3.1 mm	Latch Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Board Edge, Through Hole, Right Angle 4 position 0.138" (3.50mm)
