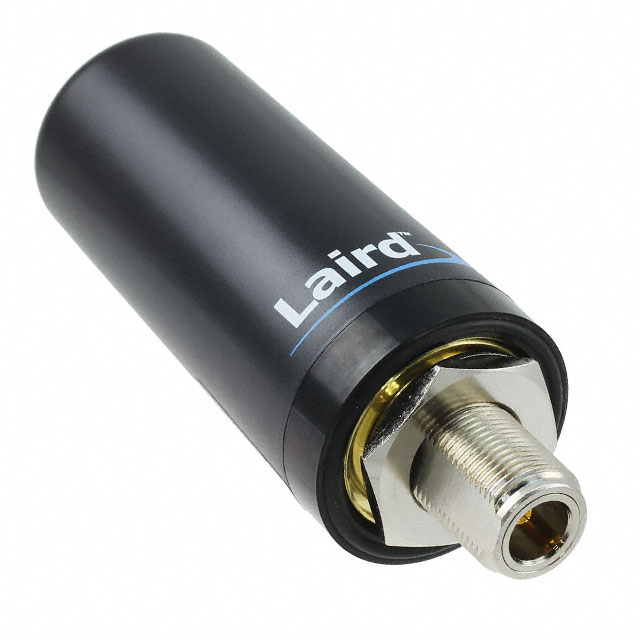

TRA6927M3PB-001
ActiveTE Connectivity Raychem Cable Protection
OMNI,DB,PH,698/1710 MHZ BK,3 DBI,100W,
Deep-Dive with AI
Search across all available documentation for this part.
TRA6927M3PB-001
ActiveTE Connectivity Raychem Cable Protection
OMNI,DB,PH,698/1710 MHZ BK,3 DBI,100W,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TRA6927M3PB-001 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 2.2 GHz, 829 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 2.7 GHz |
| Frequency Range [Min] | 698 MHz, 1.71 GHz |
| Gain | 5.5 dBi |
| Height (Max) | 83.82 mm |
| Height (Max) [Max] | 3.3 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| Termination | N Type Female |
| VSWR | 2.5 |
TRA6927 Series
| Part | Power - Max [Max] | Mounting Type | Frequency Range [Max] | Frequency Range [Min] | Termination | Height (Max) [Max] | Height (Max) | Number of Bands | VSWR | Frequency Group | Gain | Antenna Type | Frequency (Center/Band) | RF Family/Standard | VSWR [Max] | VSWR [Min] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 100 W | Base Mount | 2.7 GHz 960 MHz | 1.71 GHz 698 MHz | NMO | 3.3 in | 83.82 mm | 1 | 2.5 | Wide Band | 5.5 dBi | Dome | 2.2 GHz 829 MHz | ||||
TE Connectivity Raychem Cable Protection | 100 W | 1.99 GHz 2.7 GHz 960 MHz | 1.71 GHz 2.1 GHz 698 MHz | N Type Female | 3.3 in | 83.82 mm | 2 | Wide Band | 0 dBi 1.7 dBi 2.9 dBi | Dome | 1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz | Cellular WiFi | 2.5 | 2 | GSM LTE WiMax™ | ||
TE Connectivity Raychem Cable Protection | 100 W | 1.99 GHz 2.7 GHz 960 MHz | 1.71 GHz 2.1 GHz 698 MHz | N Type Female | 3.3 in | 83.82 mm | 2 | Wide Band | 0 dBi 1.7 dBi 2.9 dBi | Dome | 1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz | Cellular WiFi | 2.5 | 2 | GSM LTE WiMax™ | ||
TE Connectivity Raychem Cable Protection | 100 W | Base Mount | 1.99 GHz 2.7 GHz 960 MHz | 1.71 GHz 2.1 GHz 698 MHz | NMO | 3.3 in | 83.82 mm | 2 | Wide Band | 0 dBi 1.7 dBi 2.9 dBi | Dome | 1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz | Cellular WiFi | 2.5 | 2 | GSM LTE WiMax™ | |
TE Connectivity Raychem Cable Protection | 100 W | Base Mount | 1.99 GHz 2.7 GHz 960 MHz | 1.71 GHz 2.1 GHz 698 MHz | NMO | 3.3 in | 83.82 mm | 2 | Wide Band | 0 dBi 1.7 dBi 2.9 dBi | Dome | 1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz | Cellular WiFi | 2.5 | 2 | GSM LTE WiMax™ | |
TE Connectivity Raychem Cable Protection | 100 W | Base Mount | 2.7 GHz 960 MHz | 1.71 GHz 698 MHz | N Type Female | 3.3 in | 83.82 mm | 1 | 2.5 | Wide Band | 5.5 dBi | Whip Straight | 2.2 GHz 829 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.06 | |
| 10 | $ 45.21 | |||
| 25 | $ 41.92 | |||
| 100 | $ 38.97 | |||
Description
General part information
TRA6927 Series
Dome/Puck Antenna, Multi Band, Cellular / ISM, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
