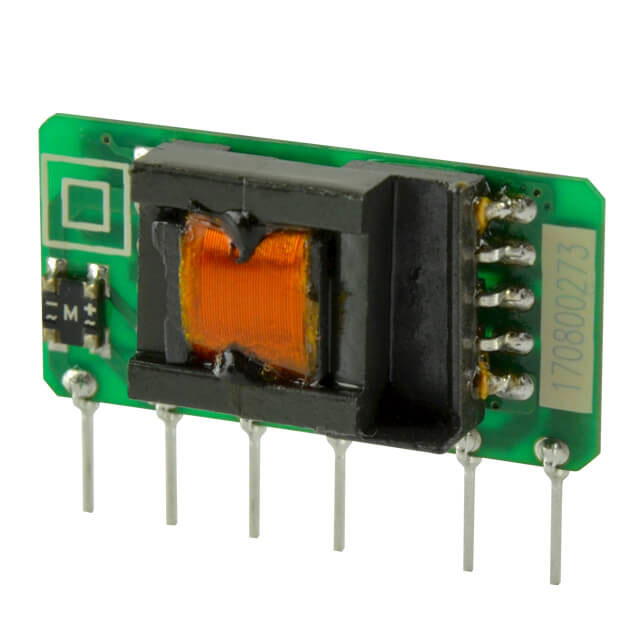

PBO-1-S9

Obsolete

CUI Inc.

AC/DC CONVERTER 9V 1W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC CONVERTER 9V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Standard Number	Load Regulation	Package / Case	Package / Case	Current - Output (Max) [Max]	Line Regulation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Mounting Type	Approval Agency	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Size / Dimension [y]	Size / Dimension [z]
CUI Inc. PBO-1-S24	ITE (Commercial)	55024 55032 60950.1 61000.32 61000.33	2.5 %	6 Leads	12-SIP Module	42 mA	1.5 %	11 mm	0.43 in	1.38 "	18 mm	0.71 in	35 mm	24 V	Open Frame	70 VDC 85 VAC	305 VAC 430 VDC	1	Through Hole	CB Scheme EN IEC UL	68 %	85 °C	-40 °C
CUI Inc. PBO-1-S12	ITE (Commercial)	55024 55032 60950.1 61000.32 61000.33	2.5 %	6 Leads	12-SIP Module	83 mA	1.5 %	11 mm	0.43 in	1.38 "	18 mm	0.71 in	35 mm	12 V	Open Frame	70 VDC 85 VAC	305 VAC 430 VDC	1	Through Hole	CB Scheme EN IEC UL	70 %	85 °C	-40 °C
CUI Inc. PBO-1-S9	ITE (Commercial)	55024 55032 60950.1 61000.32 61000.33	2.5 %	6 Leads	12-SIP Module		1.5 %	11 mm	0.43 in	1.38 "	18 mm	0.71 in	35 mm	9 V	Open Frame	70 VDC 85 VAC	305 VAC 430 VDC	1	Through Hole	CB Scheme EN IEC UL	67 %	85 °C	-40 °C
CUI Inc. PBO-1-S5-B	ITE (Commercial)		2.5 %	6 Leads	12-SIP Module	200 mA	1.5 %		0.71 in	1.38 "		0.43 "	35 mm	5 V	Open Frame	70 VDC 85 VAC	305 VAC 430 VDC	1	Through Hole	CB Scheme EN IEC UL	66 %	85 °C	-40 °C	55024 55032 Class A 60950-1 61000-3-3	18 mm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 9V 111mA 85 ~ 305 VAC, 70 ~ 430 VDC Input

Technical documentation and resources

No documents available
