PYBE30-Q24-S5

CUI Inc.

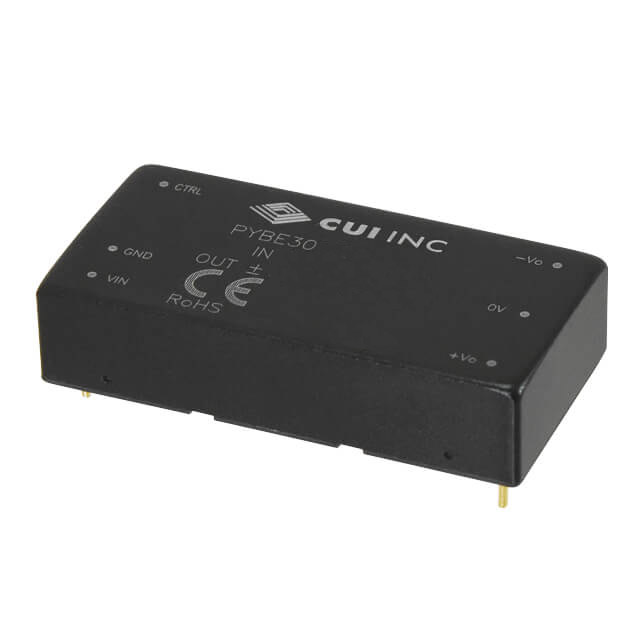

MODULE DC-DC 24VIN 1-OUT 5V 6A 30W 6-PIN DIP MODULE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

PYBE30-Q24-S5

CUI Inc.

MODULE DC-DC 24VIN 1-OUT 5V 6A 30W 6-PIN DIP MODULE TUBE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PYBE30-Q24-S5

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max) [Max]	6 A
Efficiency	86 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.46 in
Size / Dimension [z]	11.8 mm
Standard Number	55024, 60950-1, 55032 Class A
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

PYBE30 Series

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Applications	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Standard Number	Approval Agency	Type	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Number of Outputs	Power (Watts)	DC Voltage - Input (Max) [Max]	Features	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output 2	Input Type	Package / Case	Current - Output (Max)
CUI Inc. PYBE30-Q48-S15-T	Chassis Mount	31.5 mm	1.24 in	21.2 mm	2.99 in	76 mm	0.83 in	ITE (Commercial)	2 A	18 V	75 V	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	Enclosed	15 V	1.5 kV	-40 °C	80 ¯C	89 %	1	30 W
CUI Inc. PYBE30-Q24-S3-T	Chassis Mount	31.5 mm	1.24 in	21.2 mm	2.99 in	76 mm	0.83 in	ITE (Commercial)	6 A	9 V	36 V	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	Enclosed	3.3 V	1.5 kV	-40 °C	80 ¯C	85 %	1	20 W
CUI Inc. PYBE30-Q24-D5-DIN		31.5 mm	1.24 in	22.2 mm	2.99 in	76 mm	0.87 in	ITE (Commercial)	3 A				CE cURus		5 V	1.5 kV	-40 °C	80 ¯C	86 %	2	30 W	36 V	Adjustable Output Remote On/Off	9 V	3 A	-5 V	DC
CUI Inc. PYBE30-Q24-S5	Through Hole	25.4 mm	25.4 mm	11.8 mm	2 in	50.8 mm	0.46 in	ITE (Commercial)	6 A	9 V	36 V	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	Isolated Module	5 V	1.5 kV	-40 °C	80 ¯C	86 %	1	30 W		OCP OVP Remote On/Off SCP					6-DIP Module
CUI Inc. PYBE30-Q48-S3-DIN		31.5 mm	1.24 in	22.2 mm	2.99 in	76 mm	0.87 in	ITE (Commercial)	6 A			55024 55032 Class A 60950-1	CB Scheme EN IEC UL		3.3 V	1.5 kV	-40 °C	80 ¯C	86 %	1	20 W	75 V	Adjustable Output Remote On/Off	18 V			DC
CUI Inc. PYBE30-Q48-S15	Through Hole	25.4 mm	25.4 mm	11.8 mm	2 in	50.8 mm	0.46 in	ITE (Commercial)	2 A	18 V	75 V	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	Isolated Module	15 V	1.5 kV	-40 °C	80 ¯C	89 %	1	30 W		OCP OVP Remote On/Off SCP					6-DIP Module
CUI Inc. PYBE30-Q24-S5-DIN		31.5 mm	1.24 in	22.2 mm	2.99 in	76 mm	0.87 in	ITE (Commercial)	6 A			55024 55032 Class A 60950-1	CB Scheme EN IEC UL		5 V	1.5 kV	-40 °C	80 ¯C	86 %	1	30 W	36 V	Adjustable Output Remote On/Off	9 V			DC
CUI Inc. PYBE30-Q24-S24-DIN		31.5 mm	1.24 in	22.2 mm	2.99 in	76 mm	0.87 in	ITE (Commercial)	1.25 A			55024 55032 Class A 60950-1	CB Scheme EN IEC UL		24 V	1.5 kV	-40 °C	80 ¯C	90 %	1	30 W	36 V	Adjustable Output Remote On/Off	9 V			DC
CUI Inc. PYBE30-Q24-D5-T	Chassis Mount	31.5 mm	1.24 in	21.2 mm	2.99 in	76 mm	0.83 in	ITE (Commercial)	3 A	9 V	36 V		CE cURus	Enclosed	5 V	1.5 kV	-40 °C	80 ¯C	86 %	2	30 W				3 A	-5 V
CUI Inc. PYBE30-Q48-D12	Through Hole	25.4 mm	25.4 mm	11.8 mm	2 in	50.8 mm	0.46 in	ITE (Commercial)		18 V	75 V		CE cURus	Isolated Module	12 V	1.5 kV	-40 °C	80 ¯C	88 %	2	30 W		OCP OVP Remote On/Off SCP			-12 V		6-DIP Module	1.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	19	$ 32.05

Description

General part information

PYBE30 Series

Isolated Module DC DC Converter 1 Output 5V 6A 9V - 36V Input
