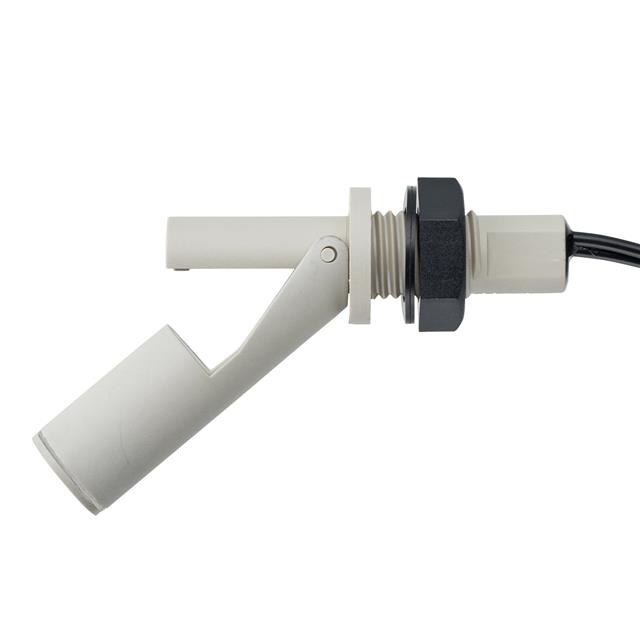

RSF46Y100RF

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RSF46Y100RF	RSF46 Series

Current	600 mA	1 - 600 A
Material - Housing & Prism	Polyphenylene Sulphide (PPS)	Polyphenylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.85	0.85
Mounting Type	M16x2 Thread, Panel Mount	M16x2 Thread, Panel Mount
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Configuration	SPST-NC/NO	SPST-NC/NO
Switch Actuation Level	0.945 in	0.945 in
Switch Actuation Level	24 mm	24 mm
Type	Liquid	Liquid
Voltage Rating	120 VDC, 240 VAC	120 - 300 VDC

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Type	Mounting Type	Material - Housing & Prism	Minimum Liquid Specific Gravity [Min]	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current	Switch Actuation Level	Switch Actuation Level	Voltage Rating
Sensata Technologies RSF46H050TG	Liquid	M16x2 Thread, Panel Mount	Polyphenylene Sulphide (PPS)	0.85	SPST-NC/NO	-10 °C	120 °C	1 A	0.945 in	24 mm	300 VDC, 300 VAC
Sensata Technologies RSF46Y100RF	Liquid	M16x2 Thread, Panel Mount	Polyphenylene Sulphide (PPS)	0.85	SPST-NC/NO	-10 °C	120 °C	600 mA	0.945 in	24 mm	120 VDC, 240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Liquid Level Sensor Switch (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread
