SRU2013 Series

Part	Inductance	Package / Case	Height - Seated (Max)	Type	Shielding	Mounting Type	Frequency - Self Resonant	Inductance Frequency - Test	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Width	Tolerance	Q	Current Rating	Current - Saturation (Isat)	DC Resistance (DCR) (Max)	Material - Core

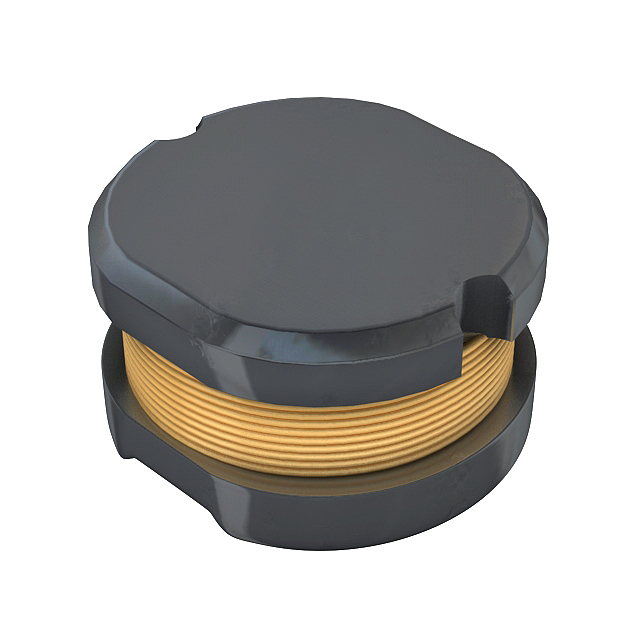

Bourns Inc. SRU2013-6R8Y	6.8 µH	Nonstandard	0.059 in	Drum Core Wirewound	Shielded	Surface Mount	60 MHz	100 kHz	125 °C	-40 °C	0.11 in	0.11 in	30 %	10	800 mA	0.6 mA	330 mOhm	Ferrite
Bourns Inc. SRU2013-1R0Y	1 µH	Nonstandard	0.059 in	Drum Core Wirewound	Shielded	Surface Mount	180 MHz	100 kHz	125 °C	-40 °C	0.11 in	0.11 in	30 %	9	2.2 A	1.6 A	65 mOhm	Ferrite
Bourns Inc. SRU2013-4R7Y	4.7 µH	Nonstandard	0.059 in	Drum Core Wirewound	Shielded	Surface Mount	72 MHz	100 kHz	125 °C	-40 °C	0.11 in	0.11 in	30 %	10	900 mA	0.75 mA	220 mOhm	Ferrite
Bourns Inc. SRU2013-2R2Y	2.2 µH	Nonstandard	0.059 in	Drum Core Wirewound	Shielded	Surface Mount	100 MHz	100 kHz	125 °C	-40 °C	0.11 in	0.11 in	30 %	10	1.45 A	0.95 mA	120 mOhm	Ferrite
Bourns Inc. SRU2013-220Y	22 µH	Nonstandard	0.059 in	Drum Core Wirewound	Shielded	Surface Mount	25 MHz	100 kHz	125 °C	-40 °C	0.11 in	0.11 in	30 %	12	400 mA	350 mA	880 mOhm	Ferrite
