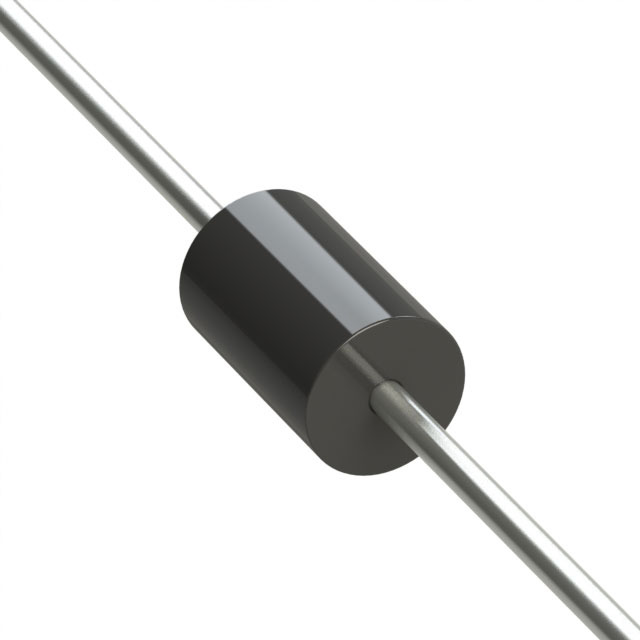

M15KP130CA/TR
Active15,000 WATT TRANSIENT VOLTAGE SUPPRESSOR (TVS) PROTECTION DEVICE
Deep-Dive with AI
Search across all available documentation for this part.
M15KP130CA/TR
Active15,000 WATT TRANSIENT VOLTAGE SUPPRESSOR (TVS) PROTECTION DEVICE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M15KP130CA/TR | M15KP130 Series |
|---|---|---|
| - | - | |
| Applications | General Purpose | General Purpose |
| Bidirectional Channels [custom] | 1 | 1 |
| Current - Peak Pulse (10/1000µs) | 72 A | 72 A |
| Grade | Military | Military |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -65 °C | -65 °C |
| Package / Case | DO-204AR, Axial | DO-204AR, Axial |
| Power Line Protection | False | False |
| Qualification | MIL-PRF-19500 | MIL-PRF-19500 |
| Supplier Device Package | DO-204AR | DO-204AR |
| Type | Zener | Zener |
| Unidirectional Channels | - | 1 |
| Voltage - Breakdown (Min) [Min] | 144 V | 144 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 209 V | 209 V |
| Voltage - Reverse Standoff (Typ) | 130 V | 130 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 23.08 | |
| Microchip Direct | N/A | 1 | $ 24.86 | |
| Newark | Each (Supplied on Full Reel) | 100 | $ 23.08 | |
| 500 | $ 22.19 | |||
M15KP130 Series
15,000 Watt Transient Voltage Suppressor (TVS) Protection Device
| Part | Mounting Type | Supplier Device Package | Voltage - Breakdown (Min) [Min] | Qualification | Current - Peak Pulse (10/1000µs) | Package / Case | Bidirectional Channels [custom] | Power Line Protection | Grade | Applications | Voltage - Reverse Standoff (Typ) | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Clamping (Max) @ Ipp [Max] | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MA15KP130CA | ||||||||||||||||
Microchip Technology M15KP130CA | ||||||||||||||||
Microchip Technology M15KP130CA/TR | Through Hole | DO-204AR | 144 V | MIL-PRF-19500 | 72 A | DO-204AR, Axial | 1 | Military | General Purpose | 130 V | Zener | 150 °C | -65 °C | 209 V | ||
Microchip Technology MA15KP130CA | Through Hole | DO-204AR | 144 V | MIL-PRF-19500 | 72 A | DO-204AR, Axial | 1 | Military | General Purpose | 130 V | Zener | 150 °C | -65 °C | 209 V | ||
Microchip Technology MA15KP130A | ||||||||||||||||
Microchip Technology MA15KP130CA/TR | ||||||||||||||||
Microchip Technology M15KP130A | ||||||||||||||||
Microchip Technology M15KP130CA/TR | ||||||||||||||||
Microchip Technology MA15KP130A | Through Hole | DO-204AR | 144 V | MIL-PRF-19500 | 72 A | DO-204AR, Axial | Military | General Purpose | 130 V | Zener | 150 °C | -65 °C | 209 V | 1 | ||
Microchip Technology M15KP130CA |
Description
General part information
M15KP130 Series
This Transient Voltage Suppressor series of M15KP22A – M15KP280CA offers an extended voltage range and also provides a variety of high reliability, uni- and bi-directional options as well. RoHS compliant versions are also available. These devices have the ability to clamp dangerous high voltage transients such as secondary effects of lightning strikes, providing circuit protection to several class levels in the IEC61000-4-5 specification. Clamping time is virtually instantaneous. It also provides protection from transients caused by inductive load dumps, RFI, and ESD, providing protection to IEC61000-4-2 and -4-4.
