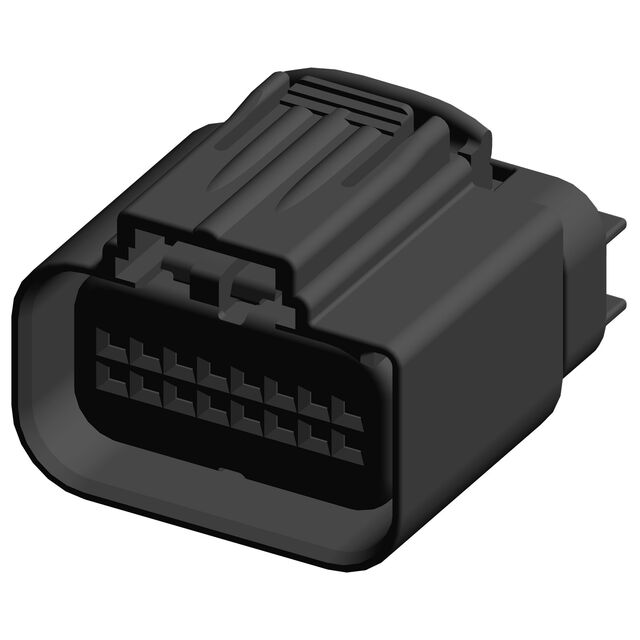

1438031-1
ActiveTE Connectivity Raychem Cable Protection
SEALD HARN ASSY W/O CPA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1438031-1
ActiveTE Connectivity Raychem Cable Protection
SEALD HARN ASSY W/O CPA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1438031-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.46 | |
| 10 | $ 5.49 | |||
| 25 | $ 5.15 | |||
| 50 | $ 4.90 | |||
| 100 | $ 4.67 | |||
| 250 | $ 4.37 | |||
| 500 | $ 4.16 | |||
| 1000 | $ 3.97 | |||
| 2500 | $ 3.72 | |||
Description
General part information
1438031 Series
16 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
