1-963539-1
ActiveTE Connectivity AMP Connectors

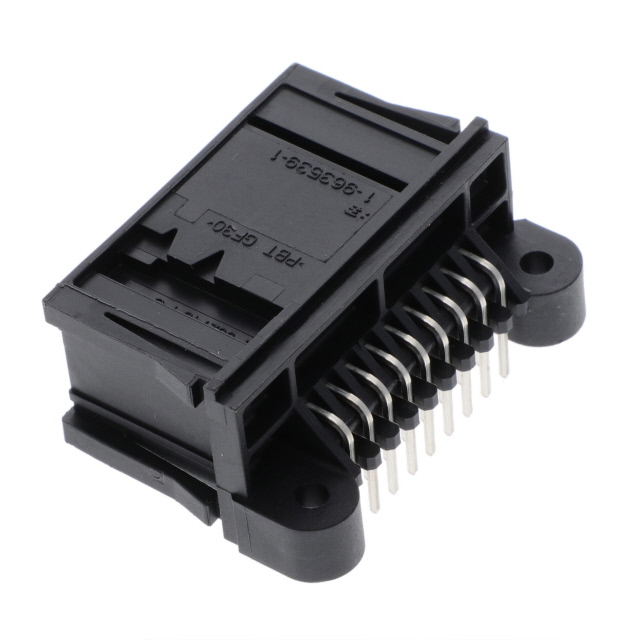

MQS PIN HEADER 2X9POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-963539-1
ActiveTE Connectivity AMP Connectors
MQS PIN HEADER 2X9POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-963539-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 6.7 mm |
| Contact Length - Mating | 0.264 in |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Mounting Flange |
| Insulation Color | Black |
| Insulation Height [z] | 17 mm |
| Insulation Height [z] | 0.669 " |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.68 | |
| 10 | $ 2.44 | |||
| 25 | $ 2.31 | |||
| 40 | $ 2.25 | |||
| 80 | $ 2.15 | |||
| 384 | $ 1.88 | |||
| 768 | $ 1.66 | |||
| 1152 | $ 1.56 | |||
| 2688 | $ 1.45 | |||
963539 Series
MQS PIN HEADER 2X9POS
| Part | Contact Length - Mating | Contact Length - Mating | Fastening Type | Shrouding | Pitch - Mating | Pitch - Mating | Style | Insulation Material | Contact Finish - Post | Insulation Color | Contact Shape | Insulation Height [z] | Insulation Height [z] | Termination | Contact Type | Mounting Type | Number of Positions | Features | Number of Rows | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [x] | Contact Length - Post | Contact Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-963539-1 | 6.7 mm | 0.264 in | Latch Lock | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Board to Cable/Wire | Polybutylene Terephthalate (PBT), Glass Filled | Tin | Black | Square | 17 mm | 0.669 " | Solder | Male Pin | Through Hole, Right Angle | 18 | Mounting Flange | 2 | All | -40 °C | 130 °C | 0.11 in | 2.79 mm | Copper Alloy | Header |
Description
General part information
963539 Series
Connector Header Through Hole, Right Angle 18 position 0.100" (2.54mm)
